O-4B | Outside air temperature sensor | 10K Ohm thermistor | Type II. | Dwyer
Outside air temperature sensor, 10K Ohm thermistor, Type II.
Documents and manuals
Dwyer O-4B Documents
Overview
Details for O-4B
Outside air temperature sensor | 10K Ohm thermistor | Type II.

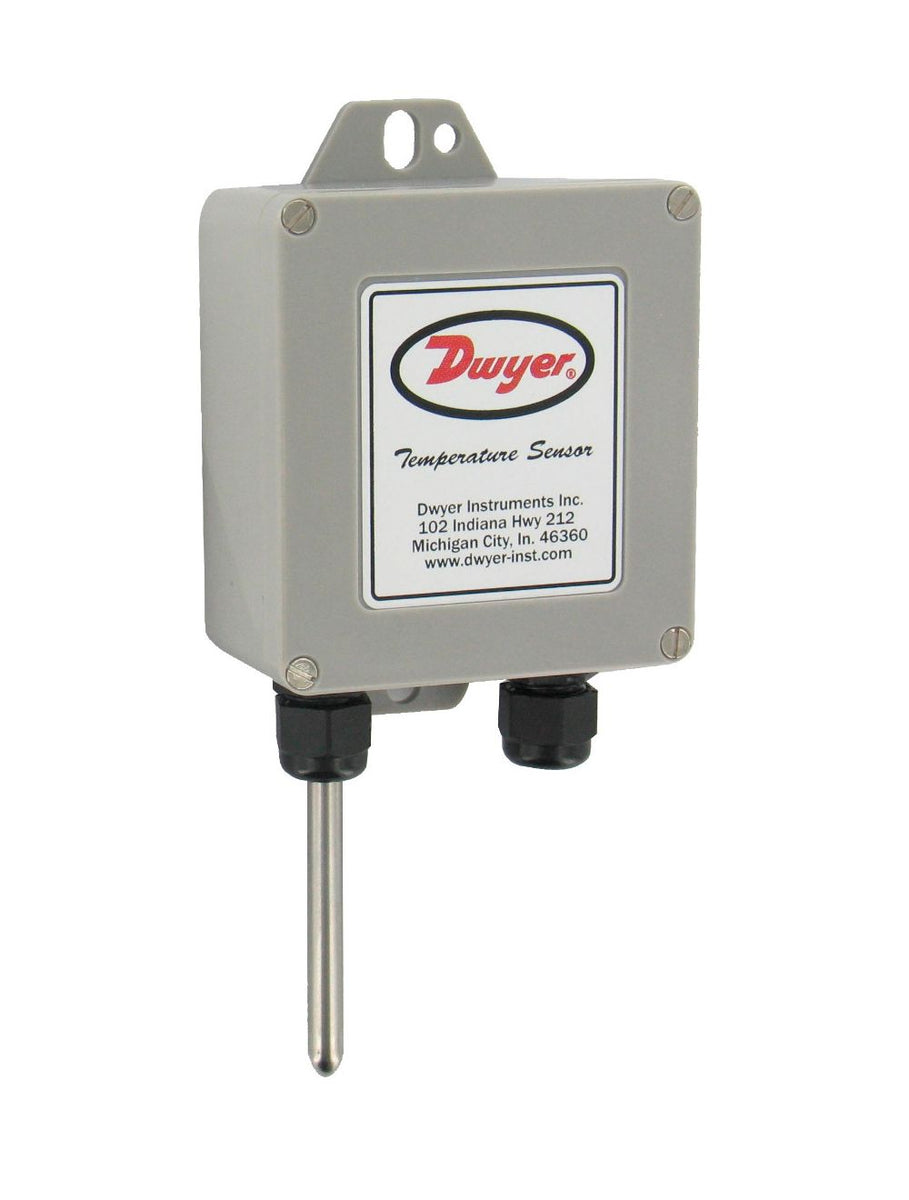

Series O-4 Outside Air Temperature Sensor
The Series O-4 Outside Air Temperature Sensors are great for monitoring ambient air temperatures in outdoor applications. The temperature sensors are mounted in a NEMA 4X enclosure with integral mounting tabs. The mounting tabs can be used to surface or suspension mount the temperature sensors. The removable terminal block makes installation easy. The Series O-4 can be used to measure outside air temperatures in building automation systems or room temperatures inside agricultural ventilation houses.
For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.
Product Applications
- Agricultural house ventilation
- HVAC and building automation
- NEMA 4X weatherproof housing
- Surface or suspension mount
Specifications
- Series
- O-4 Outside Air Temperature Sensor
- Category/Type
- Temperature
- Type
- Sensors
- Series
- O-4 Outside Air Temperature Sensor
- Accuracy
- Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F);RTD temperature sensor: DIN class B: ±0.3°C @ 0°C (±0.54°F @ 32°F).
- Operating Temperature
- -40 to 250°F.
- Probe Diameter
- 0.235" (5.97 mm)
- Probe Length
- 3.5".
- Probe Material
- 304 SS.
- Mounting
- Suspension or surface.
- Enclosure
- NEMA 4X (IP66).
- Weight
- 3 oz (85 g).
- Agency Approvals
- Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
