A/CP-O-4X | 10K ohm Type II | Outdoor Outside Air Temperature Sensor | NEMA 4X Housing Enclosure Box | ACI

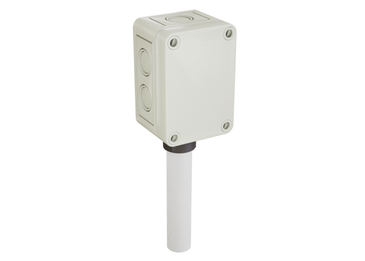

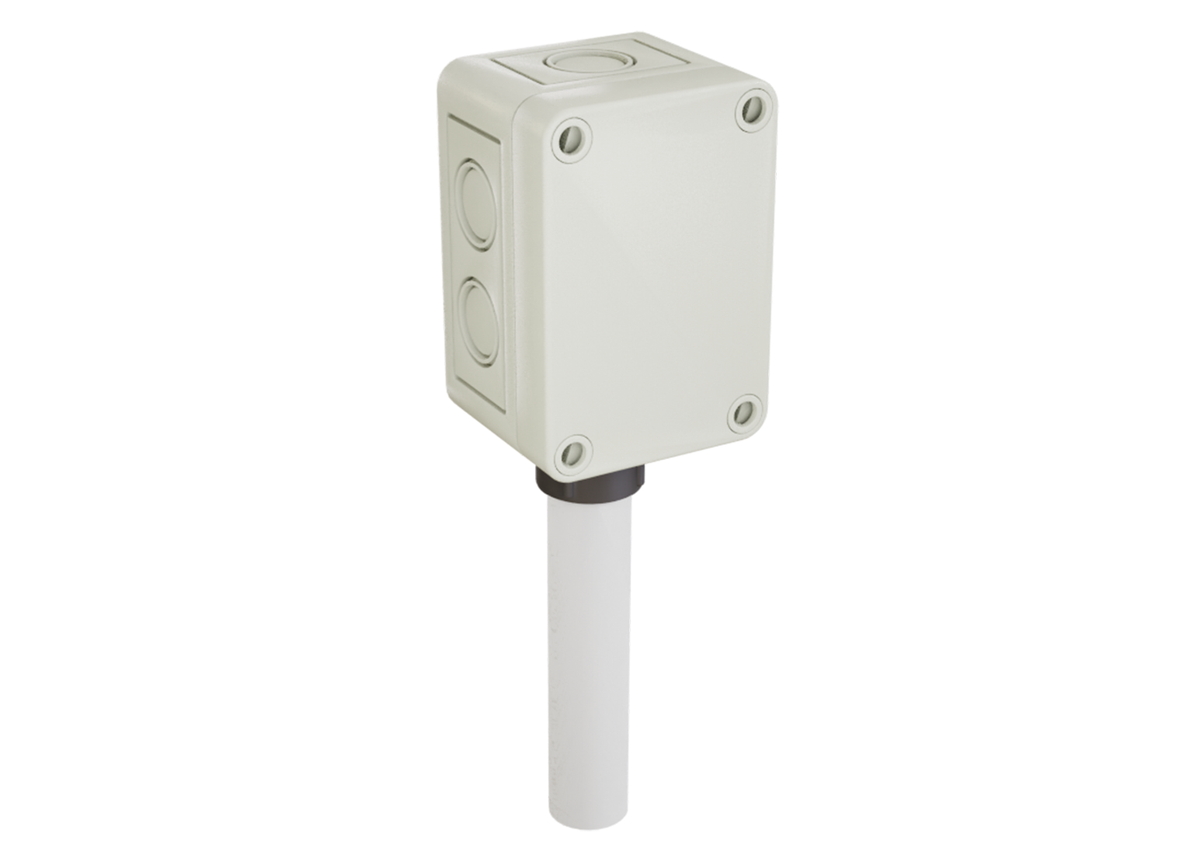

10, 000 Ohm Thermistor (Type II), Outside Air, NEMA 4X Enclosure

ACI | A/CP-O-4X
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/CP-O-4X

Documents and manuals

Overview

Details for A/CP-O-4X

A/CP-O-4X | 10K ohm Type II | Outdoor Outside Air Temperature Sensor | NEMA 4X Housing Enclosure Box

The ACI Thermistor Outside Air Series features a weather proof European Style Plastic enclosure with twist off cover and water tight cord grip fitting. The sensing element contains two, 14 22 AWG Etched Teflon colored lead wires to differentiate the sensor types. All sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors as well as to increase the thermal response time using our high quality, thermally conductive epoxy. The outside air sensor is a single point sensor designed to be mounted under an eave or on the North side of a building in a shaded location. The sensing tube pointed must be pointed downward to prevent any water or ice from settling in the sensing tube. Optional NEMA 4X -4X or NEMA 3R rated -BB cast Aluminum enclosure and NIST Certificates are available as specified in the ordering grid on the back of the product data sheet. For Applications in which the sensor must be mounted in direct sunlight, please see the Sun Shield data sheet which will allow you to order a Temperature or Temperature/Humidity Combination sensor. Applications: Outside Air Temperature Sensing, Cold Storage Facilities, High Dew Point/Condensing Environments

Specifications

Item Number A/CP-O-4X
Brand ACI
Element Type 10K Type II
Sensing Element Thermistor
Sensor Configuration Outdoor Air
Sensor Housing NEMA 4X
Sensor Temperature
