Documents: LCI132-10

Multi-Lingual Instruction Manual Series LCI132 Catalog Page More Info

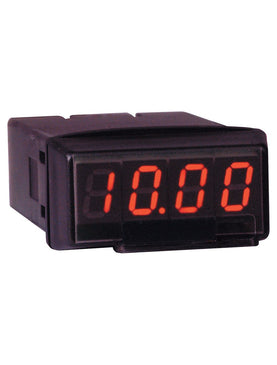

LCI132-10 | Process Indicator | ±100 VAC; 600 VAC; 5A (DC) 1A (DC); -199.9 to +600 VDC; ±100 VDC; -1.999 to 5A (DC) ±1A (DC) input | 120/240 VAC supply voltage. | Dwyer

Process Indicator, ±100 VAC; 600 VAC; 5A (DC) 1A (DC); -199.9 to +600 VDC; ±100 VDC; -1.999 to 5A (DC) ±1A (DC) input, 120/240 VAC supply voltage.

Brand: DwyerSKU: LCI132-10

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LCI132-10

Jump to: Overview & Specifications Reviews

Overview Details for LCI132-10

See catalog product page for full listing

Process Indicator | ±100 VAC; 600 VAC; 5A (DC) 1A (DC); -199.9 to +600 VDC; ±100 VDC; -1.999 to 5A (DC) ±1A (DC) input | 120/240 VAC supply voltage.

Series LCI132 Process Indicator

1/32 DIN, Fully Programmable

The Series LCI132 Process Indicator offer flexibility and value in a low cost, compact 1/32 DIN package. The shallow depth of these full size panel meters allows installation in panels only 2.76" (70 mm) deep with room to spare.

Product Applications

Display process values from various transmitters

Fits in 1/32 DIN panel cutouts
IP65 (NEMA 4X) front housing
Fully programmable
Various voltage and current inputs fits most processes

Specifications

Series: LCI132 Process Indicator
Category/Type: Pressure
Type: Remote Displays
Series: LCI132 Process Indicator
: LCI132-0X
Range: Input Volts (DC): ±200 V; ±20 V; ±10 V;Input Amperes: ±100 mV; ±20 mA;
Resolution: Input Volts (DC): 0.1 V; 0.01 V; 1 mV;Input Amperes: 0.1 mV; 0.01 mA;Input Impedance: Volts: 1 M Ω; mV: 100 M Ω; mA: 12.1 Ω.
: LCI132-1X
Range AC: Input Volts: 600.0; 100.0;Input Amperes: 5.000; 1.000;
Range DC: Input Volts: -199.9; ±600.0; ±100.0;Input Amperes: -1.999; +5.000; ±1.000;
Resolution: Input Volts: 0.1 V;Input Amperes: 1 mAInput Impedance: Volts: 3 M Ω (106); Amps: 12 m Ω (10-3).
Accuracy at 23ºC ±5ºC: 100/600 VDC 1/5 A DC; 600V/5A AC: ±(0.2% reading + 3 digits). 100 V / 1A AC:±(0.4% reading + 4 digits).
Temperature Coefficient: 100 ppm/°C.
Warm Up: 5 minutes.
: Power Supply and Fuses (DIN 41661) (Not supplied)
LCI132-X0: 85–265 VAC 50/60 Hz and 100-300 VDC: Fuse: 0.1A/ 250V.
LCI132-X1: 21-53 VAC 50/60Hz and 10.5-70 VDC: Fuse 0.5A/ 250V.
: Display
LCI132-X0: 85–265 VAC 50/60 Hz and 100-300 VDC: Fuse: 0.1A/ 250V.
LCI132-X1: 21-53 VAC 50/60Hz and 10.5-70 VDC: Fuse 0.5A/ 250V.
: Environmental
Operating Temperature: -10 to 60°C.
Storage Temperature: -25 to 85°C.
Relative Humidity (non condensed): < 95% @ 40°C.
Panel Sealing: NEMA 4X (IP66).
