Documents: IEF-LB-PG-COM

Instr Manual IEF - Firmware Ver 2 - Eff 8/7/19 BACnet / Modbus® Manual Quick Start IEF A-IEF Remote Display Manual Instr Manual IEF - Firmware Ver 1 IEFS (Disc. Series)Series IEF Catalog Page IEF More Info

IEF-LB-PG-COM | Insertion Electromagnetic flow transmitter | 4-10" (100-250 MM) pipe | standard accuracy 1% FS | 1" male BSPT process connection | PG gland | BACnet/Modbus® output | Dwyer

Insertion Electromagnetic flow transmitter, 4-10" (100-250 MM) pipe, standard accuracy 1% FS, 1" male BSPT process connection, PG gland, BACnet/Modbus® output

Brand: DwyerSKU: IEF-LB-PG-COM

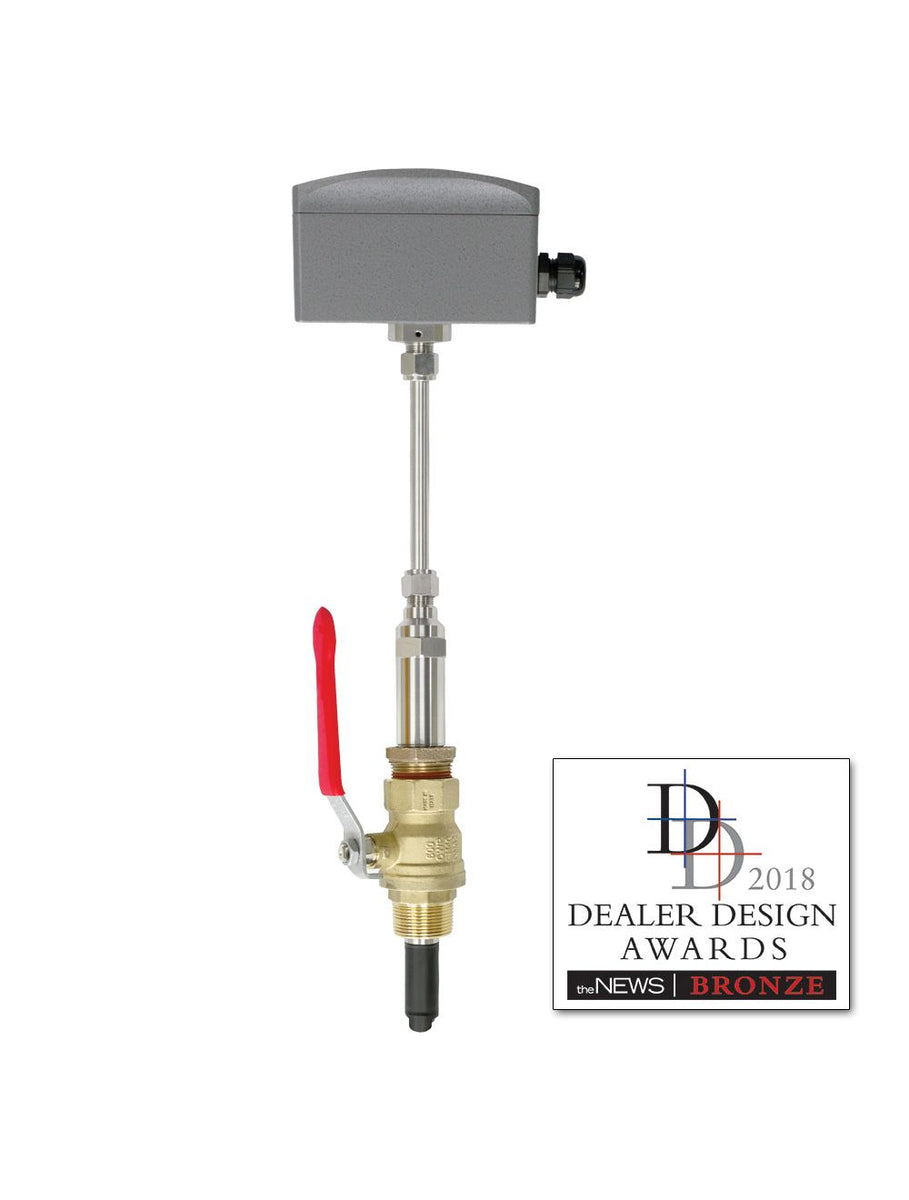

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IEF-LB-PG-COM

Jump to: Overview & Specifications Reviews

Overview Details for IEF-LB-PG-COM

See catalog product page for full listing

Series IEF Insertion Electromagnetic Flow Transmitter

Field Configurable, High Accuracy, BACnet or Modbus® Protocol

A-IEF Remote Display is NOW AVAILABLE!

The Series IEF Insertion Electromagnetic Flow Transmitter is an adjustable insertion flowmeter featuring electromagnetic technology that accurately and reliably measures fluid velocity in addition to providing several continuous signal outputs. This series is specifically designed to offer superior performance paired with simple installation and use. One unit is adjustable to fit pipe sizes from 4 to 36" (101.6 to 914.4 mm), and offers several output options including selectable BACnet MS/TP or Modbus® RTU communications protocol over 2-wire RS-485 in addition to the standard analog, frequency and alarm outputs.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Boiler feed water
Chilled water
Open and closed loop condenser water
Irrigation system
Municipal water distribution
Process and coolant flow
Ground water remediation
Chemical processing
Pump protection
Wastewater
Mining

Meet application requirements with field configurable setup displays (-LCD integral option or remote accessory A-IEF-DSP), which accommodate a variety of application configurations with one model through multiple display configurations i.e. pipe size, pipe material, liquid type, analog output, pulse/frequency output, alarm outputs, communication outputs, damping, and calibration factor
Maintain system efficiency with high performance accuracy that is maintained through changes in temperature, density or viscosity
Quick and easy ordering and set up with Setup Wizard and installation tool that are simple to use and allow for precise installation
Save time with accessory setup kit A-IEF-KIT that ensures exact installation application depth with included thickness gage and measuring tape
Reduced costs, long product life, and minimal maintenance requirements with no moving parts to wear or break and electrodes that discourage fouling
Minimize installation costs with isolation valve accessory options to allow for installation in operational systems via hot-tap kit or easy removal without system downtime
Required documents included with NIST traceable pass/fail verification certificate included standard for Carbon Steel Schedule 40 pipes sized 4" (102 mm), 6" (150 mm), 8" (200 mm)

Specifications

Series: IEF Insertion Electromagnetic Flow Transmitter
Category/Type: Flow
Type: Flow Transmitters
Series: IEF Insertion Electromagnetic Flow Transmitter
Service: Compatible clean or dirty non coating; conductive liquids.
Range: 0 to 20 ft/s (0 to 6 m/s).
Wetted Materials: Body shaft/fitting: 316SS; Electrodes: 316SS; Electrode cap: Polymer/Polystyrene; O-ring: Silicon.
Accuracy: High accuracy units: ±0.5% of reading at calibrated velocity; ±1% of reading from 2 to 20 ft/s (0.6 to 6 m/s); ±0.02 ft/s (±0.006 m/s) at < 2 ft/s (0.6 m/s);Standard accuracy units: ±1% FS.
Temperature Limits: Ambient: -20 to 160°F (-29 to 71°C); Process: 15 to 250°F (-9 to 121°C); Storage: -40 to 185°F (-40 to 85°C).
Process Connection: 1" NPT or BSPT with accessory full port ball valve options.
Pressure Limits: 400 psi (27.6 bar) @ 100º F (37.8°C).
Pressure Drop: < 0.1 psi at 12 ft/s in 4" (101.6 mm) and larger pipe.
Outputs: (1) Analog: 4 to 20 mA; 0 to 5 V; 0 to 10 V or 2 to 10 V (display selectable);(1) Pulse/Frequency: 0 to 15 V peak pulse; 0 to 500 Hz or scalable pulse output (display selectable);(2) Alarm: (1) Empty pipe detection or minimum/maximum velocity; (display selectable);(1) Reverse flow output indication.
Power Requirements: 12 to 42.4 VDC; .25 A @ 24 VDC; 12 to 36 VAC.
Electrical Connection: Removable terminal blocks; model selectable 1/2" female NPT conduit connection; PG 16 gland or PG 16 gland with (2) 10' (3 m) 9 conductor 22 AWG plenum rated cables; accessory cable lengths up to 200' (61 m) optional.
Display: 2" ( 5.08 cm) x 2" (5.08 cm) graphic LCD with backlight.
Conductivity: >20 microsiemens.
Enclosure Material: Powder coated die cast aluminum.
Enclosure Ratings: NEMA 6P (IP68) (Non display models); NEMA 4X (IP66) (-LCD option).
Agency Approvals: BTL; CE; NSF/ANSI 61 and 372.
: COMMUNICATIONS (-COM OPTION)
Type: BACnet MS/TP or Modbus® RTU communication protocol (default disabled; display selectable).
Supported Baud Rates: 9600; 19200; 38400; 57600; 76800; or 115200 bps (display selectable).
Device Load: 1/8 unit load.
: ADDITIONAL SPECIFICATIONS
Applicable Pipe Material: Most popular plastic and metal pipes; i.e. Carbon steel; SS; copper; UPVC/PVDF; galvanized steel; mild steel; and brass*.
Applicable Pipe Size: 4 to 36" (100 to 900 mm); model dependent. See model chart on catalog page.
Diameter Length Requirements: >10 upstream; >5 downstream.
Glycol: 0 to 100% display selectable.
: *Brass fittings and pipe not for use with NSF Certified models.
