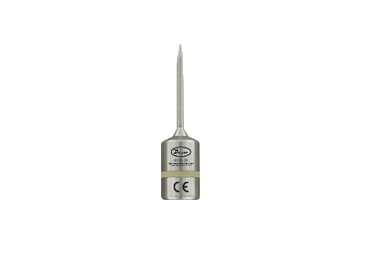

HTDL-30 | High temperature data logger with 24" flexible probe. | Dwyer
High temperature data logger with 24" flexible probe.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HTDL-30
Documents and manuals
Dwyer HTDL-30 Documents
Overview
Details for HTDL-30
See catalog product page for full listing
High temperature data logger with 24" flexible probe.
Series HTDL-20/30 High Temperature Data Logger
Submersible, Continuous Recording, User Replaceable Battery
The Model HTDL-20/30 is a high temperature data logger that can measure temperatures up to 500°F (260°C) and record up to 65,536 measurements.
Product Applications
- Thermal testing
- Process monitoring or troubleshooting
- Submersible and portable
- Temperature measurement up to 500°F
- Remote probe option for chamber or oven logging
- Delay startup timer
Specifications
- Series
- HTDL-20/30 High Temperature Data Logger
- Category/Type
- Test Equipment
- Type
- Data Loggers
- Series
- HTDL-20/30 High Temperature Data Logger
- Range
- -328 to 500°F (-200 to 260°C).
- Memory Size
- 65;536 readings.
- Accuracy
- 0.18°F (0.1°C) @ 68 to 284°F(20 to 140°C); 0.54°F (0.3°C) @ -4 to67.98°F (-20 to 19.99°C); 0.72°F (0.4°C)@ -40 to -4°F (-40 to –20°C).
- Resolution
- 0.02°F (0.01°C).
- Temperature Limits
- -40 to 284°F (-40 to 140°C).
- Sampling Method
- Stop on memory full or continuous recording.
- Sampling Rate
- Selectable from 1 s to 24 hrs.
- Computer Requirements
- Windows XP SP3 or later.
- Power Requirements
- 3.6 V 1/2 AA ER14250SM lithium metal battery; installed functional; user replaceable.
- Battery Life
- 1 year (approx).
- Interface
- Docking station and USB cable.
- Housing Material
- 316 SS.
- Weight
- 4.2 oz (120 g).
