DL6005 | Pressure/temperature/RH datalogger | range 0-5 psig (30 kPa). | Dwyer

Pressure/temperature/RH datalogger, range 0-5 psig (30 kPa).

Brand: DwyerSKU: DL6005

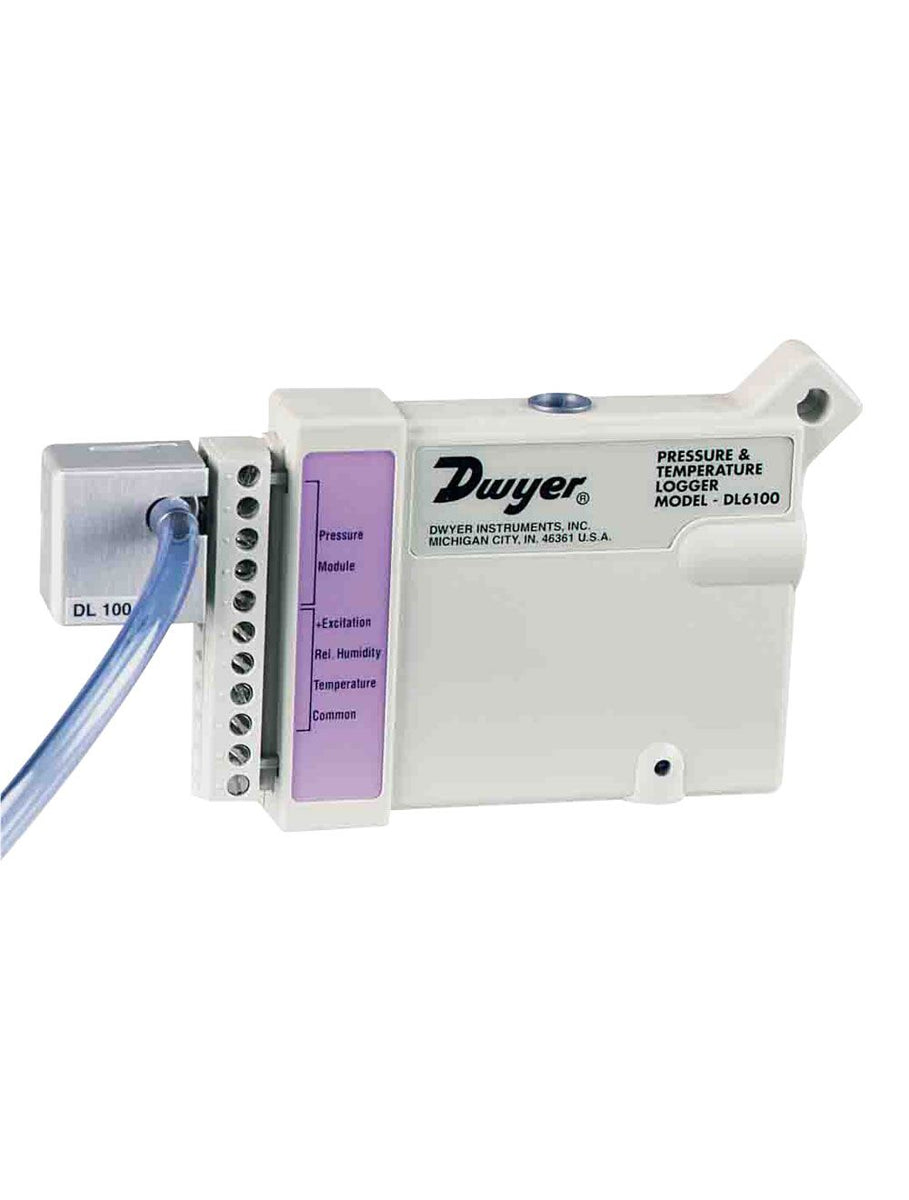

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DL6005

Jump to: Overview & Specifications Reviews

Overview Details for DL6005

See catalog product page for full listing

Pressure/temperature/RH datalogger | range 0-5 psig (30 kPa).

Series DL6 Pressure/Temperature/RH Data Logger

Self-Powered, 5-Channel, Store up to 32,768 Readings, Compact

Monitor and troubleshoot HVAC systems, verify energy management systems, or track performance of pneumatically controlled valves with Series DL6 Pressure/Temperature/RH Data Logger. Units include an on-board thermistor for ambient temperature measurement and pressure module. Remote humidity/temperature sensor and plug-in humidity sensor are sold separately. Loggers can store up to 32,768 readings and operate independently from any external power supply with built-in lithium battery. Use Model DL200 Windows® software (sold separately) to quickly program the logger or upload data to the computer.

Specifications

Series: DL6 Pressure/Temperature/RH Data Logger
Category/Type: Test Equipment
Type: Data Loggers
Series: DL6 Pressure/Temperature/RH Data Logger
No. of Channels: Five; internal thermistor; pressure module (included); plug-in humidity sensor; remote humidity/temperature sensor.
Internal Thermistor Range: -40 to 158°F (-40 to 70°C).
Compensated Temperature Range: 32 to 158° F (0 to 70°C).
Memory Size: 32;768 readings.
Accuracy: ±1% FS.
Clock Accuracy: ±8 sec/day plus one sampling interval.
Thermal Accuracy: ±1% FS.
Drift: ±0.2% FS/yr.
Internal Thermistor Resolution: 0.7°F (0.4°C); R25 value equal to 10;000Ω.
Resolution: 8 bits (1 in 256).
Sampling Method: Continuous (First-in; First-out) or Stop when full (Fill-then-stop).
Sampling Rate: Selectable from 8 seconds to once every 5 days.
Ambient Operating Temperature/RH: -50 to 160°F (-45 to 70°C); 0 to 95% RH; non-condensing.
Connection: Removable screw terminal.
Computer Requirements: IBM compatible 386 or above and Windows® 3.1 or later with 2MB RAM and 2MB hard drive disk space; one serial port.
Power Requirements: 3.6 V TL5134 lithium metal battery; internal; factory replaceable.
Power Consumption: 5 to 10 µA.
Service: Air and noncorrosive gases.
Max. Pressure Rating: 4X rated pressure.
Housing Material: PPE & PS (polyphenylene ether & polystyrene).
Weight: 5 oz (110 g).
Agency Approvals: CE.
