HTDL-20 | High temperature data logger with 2" rigid probe. | Dwyer

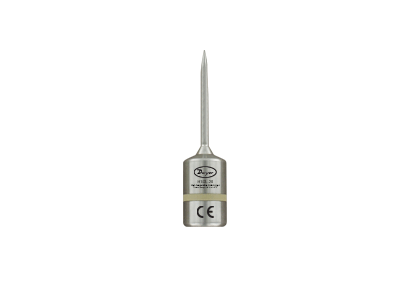

High temperature data logger with 2" rigid probe.

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for HTDL-20

See catalog product page for full listing

High temperature data logger with 2" rigid probe.

Submersible, Continuous Recording, User Replaceable Battery

The Model HTDL-20/30 is a high temperature data logger that can measure temperatures up to 500°F (260°C) and record up to 65,536 measurements.

Series: HTDL-20/30 High Temperature Data Logger
Category/Type: Test Equipment
Type: Data Loggers
Series: HTDL-20/30 High Temperature Data Logger
Range: -328 to 500°F (-200 to 260°C).
Memory Size: 65;536 readings.
Accuracy: 0.18°F (0.1°C) @ 68 to 284°F(20 to 140°C); 0.54°F (0.3°C) @ -4 to67.98°F (-20 to 19.99°C); 0.72°F (0.4°C)@ -40 to -4°F (-40 to –20°C).
Resolution: 0.02°F (0.01°C).
Temperature Limits: -40 to 284°F (-40 to 140°C).
Sampling Method: Stop on memory full or continuous recording.
Sampling Rate: Selectable from 1 s to 24 hrs.
Computer Requirements: Windows XP SP3 or later.
Power Requirements: 3.6 V 1/2 AA ER14250SM lithium metal battery; installed functional; user replaceable.
Battery Life: 1 year (approx).
Interface: Docking station and USB cable.
Housing Material: 316 SS.
Weight: 4.2 oz (120 g).
