HBAV0324 | 2-Way ball valve | 3/4" NPT | modulating | 24 VAC | Dwyer

2-Way ball valve, 3/4" NPT, modulating, 24 VAC

Brand: DwyerSKU: HBAV0324

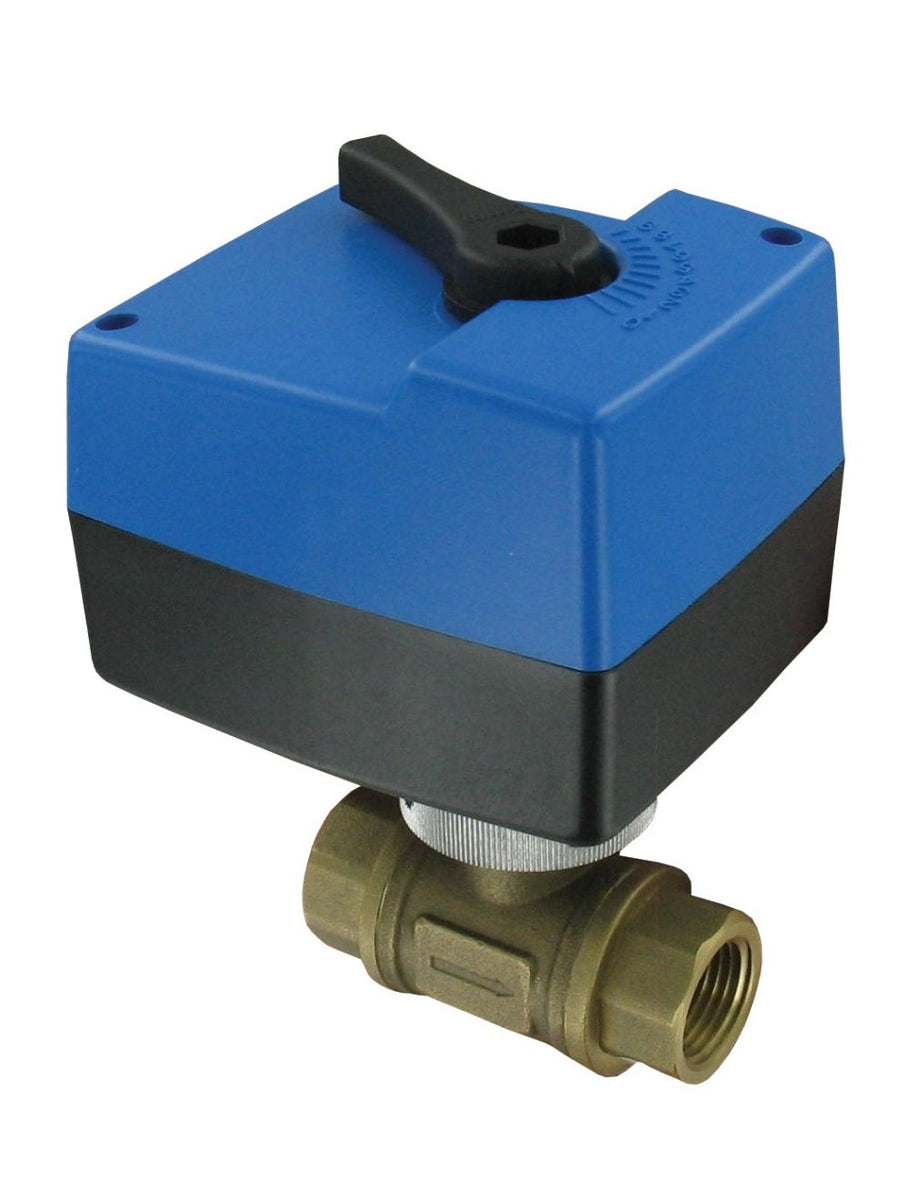

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HBAV0324

Jump to: Overview & Specifications Reviews

Overview Details for HBAV0324

See catalog product page for full listing

2-Way ball valve | 3/4" NPT | modulating | 24 VAC

SERIES HBAV TWO-WAY DETACHABLE ELECTRIC BALL VALVE

Floating or Modulating, Position Indicator

The Series HBAV is an electrical ball valve ideal for flow control in hot andcold water HVAC systems. These valves are typically used in conjunction withair conditioning systems, heating systems, water treatment and productionindustries. The HBAV is electrically driven open and/or closed via abidirectional AC motor. The electrical valve offers a detachable actuator withposition switches and indicator. The HBAV is available with modulating orfloating actuators.

California Residents: Click Here for Proposition 65 WARNING.

Manual override
Detachable actuator
High Cv values

Specifications

Series: HBAV TWO-WAY DETACHABLE ELECTRIC BALL VALVE
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: HBAV TWO-WAY DETACHABLE ELECTRIC BALL VALVE
Service: Compatible fluids.
Body: 2-way; NC.
Line Size: 1/2 to 2" NPT.
End Connections: Female NPT.
Pressure Limits: Max: 375 psi (25 bar); Close off: 87 psi (6 bar).
Temperature Limit Ambient:: Ambient: -22 to 158°F (-30 to 70°C);Process: 23 to 122°F (-5 to 50°C).
Wetted Materials: Brass; SS; NBR; PTFE.
Input: Floating: 3-wire; Modulating: 4 to 20 mA (24 VAC power only).
Power Requirements: 120 VAC or 24 VAC; 50/60 Hz; single phase.
Power Consumption: Floating: 3 to 5 VA; Modulating: 4 VA.
Electrical Connection: 18 AWG.
Cycle Time (per 90°): 1/2 to 1": 45 sec.; 1-1/4 to 2": 50 sec.
Enclosure Rating: NEMA 1 (IP10).
Housing Material: Plastic; nylon; and polyoxymethylene.
Weight: See catalog page.
