GCK-200CO-2000CO2 | Gas Calibration Kit (GROUND SHIPMENTS ONLY) | Dwyer

Gas Calibration Kit (GROUND SHIPMENTS ONLY)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GCK-200CO-2000CO2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer GCK-200CO-2000CO2 Documents

Model GCK-200CO-2000CO2 Catalog Page More Info

Overview

Details for GCK-200CO-2000CO2

See catalog product page for full listing

Gas Calibration Kit (GROUND SHIPMENTS ONLY)

Model GCK-200CO-2000CO2 Carbon Monoxide/Carbon Dioxide

200 PPM CO/2000 PPM CO2 Gas Concentrations

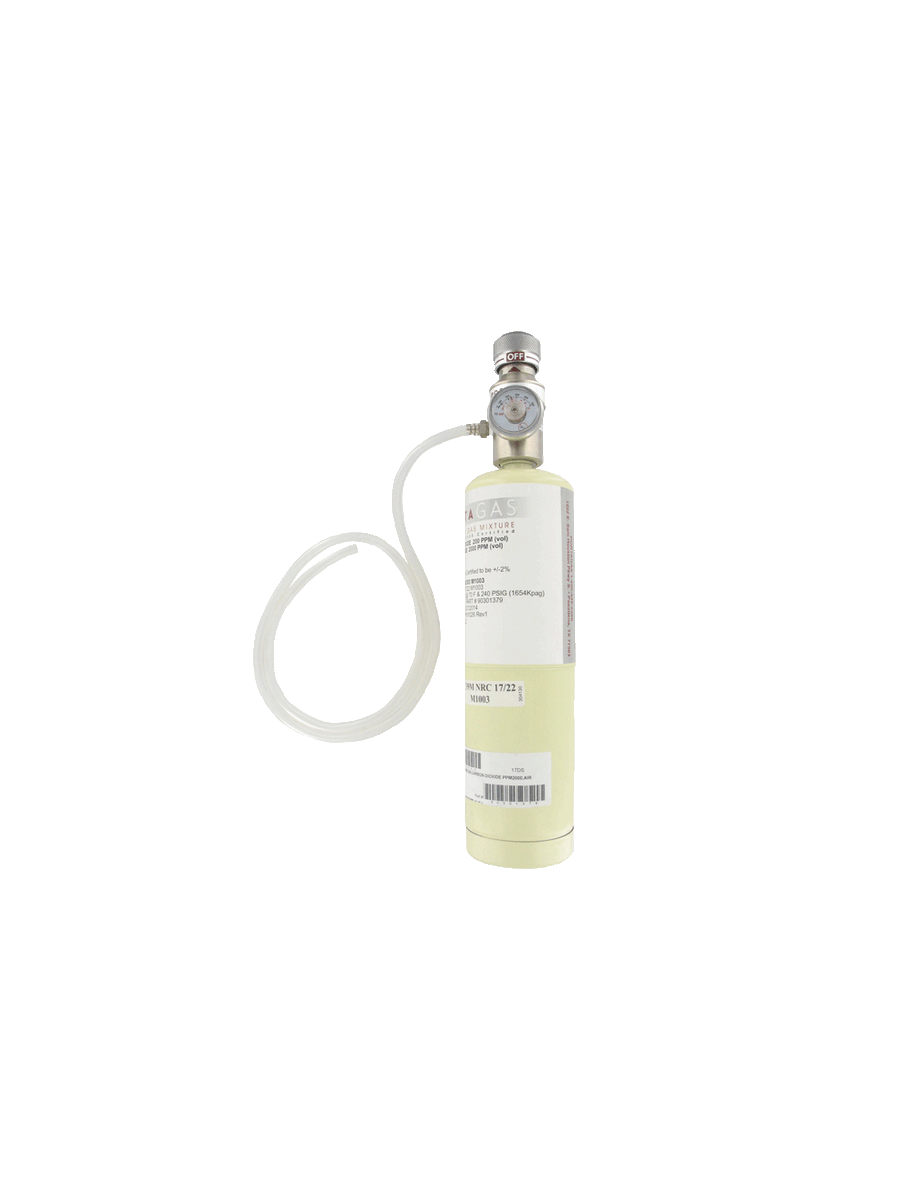

The Model GCK-200CO-2000CO2 Gas Calibration Kit provides a reliable flow of carbon monoxide and carbon dioxide to calibrate Dwyer® gas sensing transmitters. Every kit includes a span gas of 200 PPM carbon monoxide and 2000 PPM of carbon dioxide, a reference gas of 99.99% nitrogen, a 0.5 LPM flow regulator, and tubing. For convenient transportation, each kit is packaged in a hard carrying case. A certificate of analysis and material safety data sheets are included for both gas cylinders.

Specifications

Item Number	GCK-200CO-2000CO2
Brand	Dwyer
Accuracy	±2%.
Category/Type	Air Quality
Cylinder Capacity	0.6 ft3 @ 70°F and 240 psig (17 L @ 21°C & 1654 KPAG).
Flow Regulator Flow Rate	0.5 LPM.
Gas Concentrations	200 PPM CO/2000 PPM CO2 for span gas; 99.99% N2 for reference gas.
Type	Accessories
Weight	14 lb (15 oz).
