G9-23 | Globe flow switch | actuation set point 7.0-14.0 GPM (26.5-53.0 LPM). | Dwyer

Globe flow switch, actuation set point 7.0-14.0 GPM (26.5-53.0 LPM).

Brand: DwyerSKU: G9-23

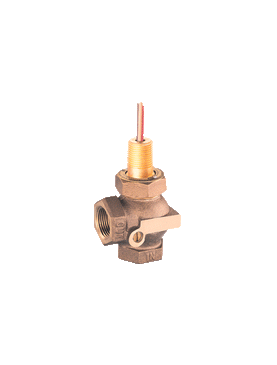

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to G9-23

Jump to: Overview & Specifications Reviews

Overview Details for G9-23

See catalog product page for full listing

Globe flow switch | actuation set point 7.0-14.0 GPM (26.5-53.0 LPM).

Series G9 Globe Flow Switch

Adjustable Set Point, Water or Oil Service, 90° Flow Path

The Series G9 Globe Flow Switch provides accurate flow detection in water and oil with ±1% repeatability. A shuttle bypass vane inside the housing is controlled externally using an ordinary flat blade screwdriver, allowing flow settings to be changed without disassembly. Each switch is constructed of noncorrosive materials and resists shock and vibration. The Series G9 is suitable for triggering alarms on interlocking shutdown circuitry when flow rate is incorrect and for protecting bearings, gears, and cooling systems.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: G9 Globe Flow Switch
Category/Type: Flow
Type: Flow Switches
Series: G9 Globe Flow Switch
Service: Compatible liquids.
Wetted Materials: Housing: bronze; Shuttle: Acetal; Spring: 316 SS; O-ring: Fluoroelastomer; Other: ceramic.
Temperature Limits: -20 to 180°F (-29 to 82°C).
Pressure Limits: 400 psi (27 bar) @ 100°F (37.8°C).
Accuracy: ±10% of set point.
Repeatability: ±1% maximum deviation.
Switch Type: SPDT.
Electrical Rating: .17 A @ 120 VAC; .08 A @ 240 VAC; .13 A @ 120 VDC; .06 A @ 240 VDC.
Electrical Connections: 18 AWG; 24" (61 cm); polymeric lead wires.
Process Connection: 3/4" female NPT.
Mounting Orientation: Any position. Set points shown are based on vertical; lead wires up position.
Required Filtration: 150 microns or better.
Weight: 1 lb; 11 oz (0.76 kg).
Agency Approval: CE.
