FS20400 | Flowmeter with flow limit switch | range 0.5 to 4.0 GPM (1.9 to 15 LPM) | 3/4" male NPT (brass). | Dwyer
Flowmeter with flow limit switch, range 0.5 to 4.0 GPM (1.9 to 15 LPM), 3/4" male NPT (brass).

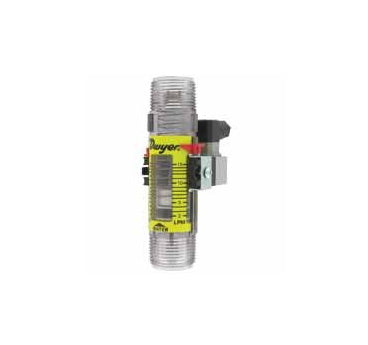

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FS20400
Documents and manuals
Dwyer FS20400 Documents
Overview
Details for FS20400
See catalog product page for full listing
Flowmeter with flow limit switch | range 0.5 to 4.0 GPM (1.9 to 15 LPM) | 3/4" male NPT (brass).
Series FS Flowmeter with Flow Limit Switch
Latching Relay, Adjustable, Dual Scale, Mount in any Position
Direct-Reading Series FS Flowmeters offer visual flow rate indication and an adjustable flow alarm to close AC electrical circuits, trigger warning lights, or activate other process control equipment. Spring-retained movable piston design allows installation in any position.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Chemical processing
- Waste water processing
- Process control
- Lubrication systems
- Solar systems
- Drain lines
- Pump testing
Specifications
- Series
- FS Flowmeter with Flow Limit Switch
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- FS Flowmeter with Flow Limit Switch
- Service
- Compatible liquids.
- Wetted Materials
- Polysulfone body; Barium Ferrite; stainless steel spring and retaining rings.
- Temperature Limits
- 158°F (70°C).
- Pressure Limits
- 325 psi (22.4 bar).
- Accuracy
- ±7% full scale.
- Repeatability
- 1.0%.
- Set Point
- Adjustable 0 to 100% FS.
- Supply Voltage
- 115 VAC; 140 VAC max.
- On-State Current
- 0.02 to 1.0 A AC.
- Connections
- 1" male NPT Polysulfone or 3/4" male NPT Brass.
- Flow Scale
- Calibrated at 1.0 specific gravity @ 70°F (21°C).
- Agency Approvals
- CE.
