FS12810 | Flowmeter with flow limit switch | range 4.0 to 28 GPM (20 to 100 LPM) | 1" male NPT (polysulfone). | Dwyer

Flowmeter with flow limit switch, range 4.0 to 28 GPM (20 to 100 LPM), 1" male NPT (polysulfone).

Brand: DwyerSKU: FS12810

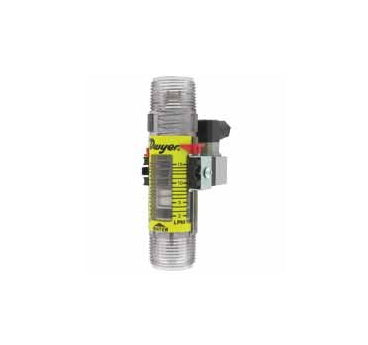

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to FS12810

Jump to: Overview & Specifications Reviews

Overview Details for FS12810

See catalog product page for full listing

Flowmeter with flow limit switch | range 4.0 to 28 GPM (20 to 100 LPM) | 1" male NPT (polysulfone).

Series FS Flowmeter with Flow Limit Switch

Latching Relay, Adjustable, Dual Scale, Mount in any Position

Direct-Reading Series FS Flowmeters offer visual flow rate indication and an adjustable flow alarm to close AC electrical circuits, trigger warning lights, or activate other process control equipment. Spring-retained movable piston design allows installation in any position.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Chemical processing
Waste water processing
Process control
Lubrication systems
Solar systems
Drain lines
Pump testing

Specifications

Series: FS Flowmeter with Flow Limit Switch
Category/Type: Flow
Type: Flowmeters
Series: FS Flowmeter with Flow Limit Switch
Service: Compatible liquids.
Wetted Materials: Polysulfone body; Barium Ferrite; stainless steel spring and retaining rings.
Temperature Limits: 158°F (70°C).
Pressure Limits: 325 psi (22.4 bar).
Accuracy: ±7% full scale.
Repeatability: 1.0%.
Set Point: Adjustable 0 to 100% FS.
Supply Voltage: 115 VAC; 140 VAC max.
On-State Current: 0.02 to 1.0 A AC.
Connections: 1" male NPT Polysulfone or 3/4" male NPT Brass.
Flow Scale: Calibrated at 1.0 specific gravity @ 70°F (21°C).
Agency Approvals: CE.
