Documents: F7-SS6

Model F7-EB Series F7 Series F6 Series F6 & F7 Horizontal Catalog Page More Info

F7-SS6 | Bent stem level switch | 316SS float and stem | temperature limit 300°F (149°C) | pressure limit 100 psig (7 bar) | 3/8"-24 UNF-2A mounting | Dwyer

Bent stem level switch, 316SS float and stem, temperature limit 300°F (149°C), pressure limit 100 psig (7 bar), 0.70 min. specific gravity, electrical rating 20 VA: 0.08A @ 220 VAC N.O. operation, 22 AWG 24" (61 cm) wire leads, 3/8"-24 UNF-2A mounting, weight 2 oz (58 g).

Brand: DwyerSKU: F7-SS6

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to F7-SS6

Jump to: Overview & Specifications Reviews

Overview Details for F7-SS6

See catalog product page for full listing

Bent stem level switch | 316SS float and stem | temperature limit 300°F (149°C) | pressure limit 100 psig (7 bar) | 3/8"-24 UNF-2A mounting

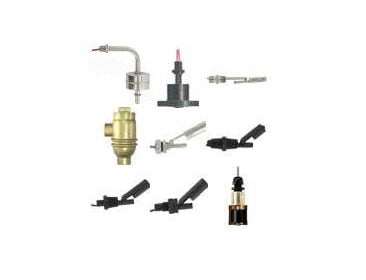

Series F6 & F7 Level Switches - Horizontal/Specialty

Low Cost, Hermetically Sealed Contacts

The Series F6 & F7 Horizontal Float Level Switches are designed to mount through the walls of tanks and other vessels. Internally mounted models F6-HPS-11, F6-MHS and F7-SS6 are secured to the wall of the tank or vessel from the inside while model F6-HPS-21 is mounted from the outside (externally). Models F7-HSS and F6-MHS2 can be installed internally or externally.

The Series F6 & F7 Specialty Float Level Switches are designed for unique applications. Model F7-SS5B/BNC can be used with viscous liquids or liquids with suspended metal particles. Use model F7-LL for low level detection (≥ 5/8"). The non-intrusive bottle style F7-EB mounts completely outside the tank at the actuation level. Suspend model F7-WBB in stand pipes or sumps for leak detection or drop into wells for ground-water monitoring.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Water level monitoring
Oil level control
Chemical level indication
Sumps
Stand pipes
Tank level control

Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float arm and can be easily adapted to open or close a circuit on rising or falling levels
