Documents: F451

Instruction Manual Model F222/Model F451 Catalog Page More Info

F451 | Liquid/particle filter for compressed air | removes dirt | water and oil | maximum flow 45 scfm @ 100 psig | 1/4" female NPT inlet and outlet. | Dwyer

Liquid/particle filter for compressed air, removes dirt, water and oil, maximum flow 45 scfm @ 100 psig, 1/4" female NPT inlet and outlet.

Brand: DwyerSKU: F451

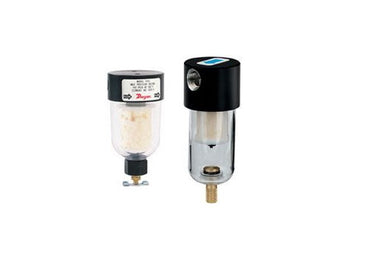

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to F451

Jump to: Overview & Specifications Reviews

Overview Details for F451

See catalog product page for full listing

Liquid/particle filter for compressed air | removes dirt | water and oil | maximum flow 45 scfm @ 100 psig | 1/4" female NPT inlet and outlet.

Model F222/F451 Liquid/Particle Filter

Liquid/Particle Filter

Compressed air filters protect equipment and instrumentation from harmful contaminants such as dirt, water and oil. Liquids are continuously coalesced and released through the manual drain valves. Replaceable filter element removes particles and droplets as small as 0.01 micron with 93% efficiency. Units have 1/4" female NPT inlet and outlet and manual drain valve.

Specifications

Item Number	F451
Brand	Dwyer
Category/Type	Accessories
Filtration Efficiency	93% (removal of 0.01 micron particles).
Inlet & Outlet Ports	1/4" female NPT.
Materials of Construction	Anodized aluminum head; polycarbonate bowl; cadmium plated steel tie rod; nylon internals; Buna-N seal.
Max. Flow at 100 psig	22 scfm (F222); 45 scfm (F451).
Maximum Pressure	150 psig (10 bar).
Maximum Temperature	130°F (54°C).
Mounting	In-line only (F222); 1/4-20 mounting holes (F451).
Type	Filters; Regulators and Lubricators
Weight	0.5 lb (0.2 kg) (F222); 1.1 lb (0.5 kg) (F451).
