E92S11A22D240 | Electromechanical relay | DPDT | 240 VAC. | Dwyer
Electromechanical relay, DPDT, 240 VAC.

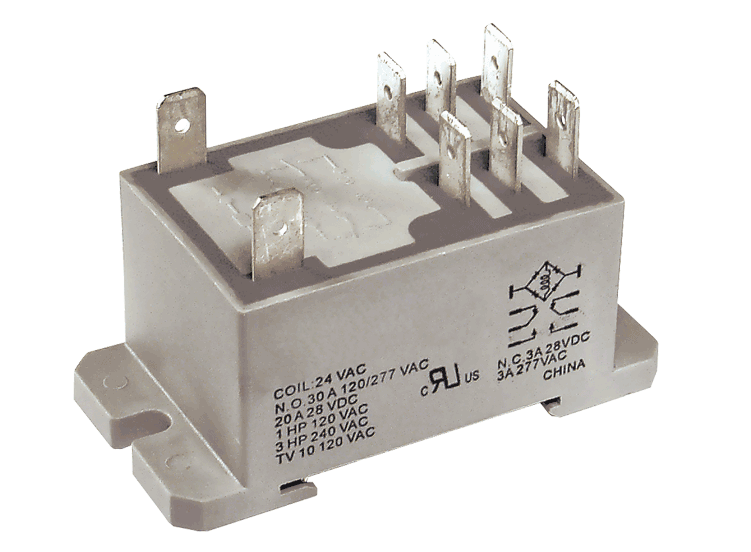

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to E92S11A22D240
Documents and manuals
Dwyer E92S11A22D240 Documents
Overview
Details for E92S11A22D240
See catalog product page for full listing
Electromechanical relay | DPDT | 240 VAC.
Series 9 Electromechanical Relay
30 Amp, SPDT and DPDT Operation
The Series 9 Electromechanical Relays are small in size, features Class F insulation for a max coil temperature of 155°C, quick-connect terminals for simple connection, and is panel mountable. The relays are compact and impervious to shock and vibration.
Product Applications
- Motor control
- Lighting control
- Refrigeration compressor systems
- Compact size for flange mounting
- Quick-connect terminals to allow for easy installation
Specifications
- Series
- 9 Electromechanical Relay
- Category/Type
- Process Control
- Type
- Relays
- Series
- 9 Electromechanical Relay
- Operating and Load Voltage Range
- 12-277 VAC ; 5-110 VDC.
- Electrical Connection
- Quick-connect tab terminals. SPDT 0.187" coil terminal / 0.25" contact terminal; DPDT 0.25' coil terminal / 0.25" contact terminal.
- Switching Operation
- SPDT or DPDT.
- Electrical Rating
- SPDT: NO 30 A @ 240 VAC / 28 VDC; NC 10 A @ 240 VAC / 28 VDC; DPDT: 30 A @ 240 VAC; 20 A @ 28 VDC.
- Temperature Limits
- Storage: -40 to 185°F (-40 to 85°C); Operation: -40 to 131°F (-40 to 55°C)
- Voltage Loss
- 2.5 VA (VAC); 1W (VDC).
- Cycle Life
- 100;000 Cycles (Electrical); 10;000;000 Cycles (Mechanical).
- Housing
- Polyester resin.
- Weight
- 1.16 oz (SPDT); 3 oz (DPDT).
- Agency Approvals
- CE; cULus; (EMR-XXXX-DPDT); cURus (EMR-XXXX-SPDT).
