Documents: DW-USB-2-LCD

Instruction Manual Series DW-USB-LCD Catalog Page More Info

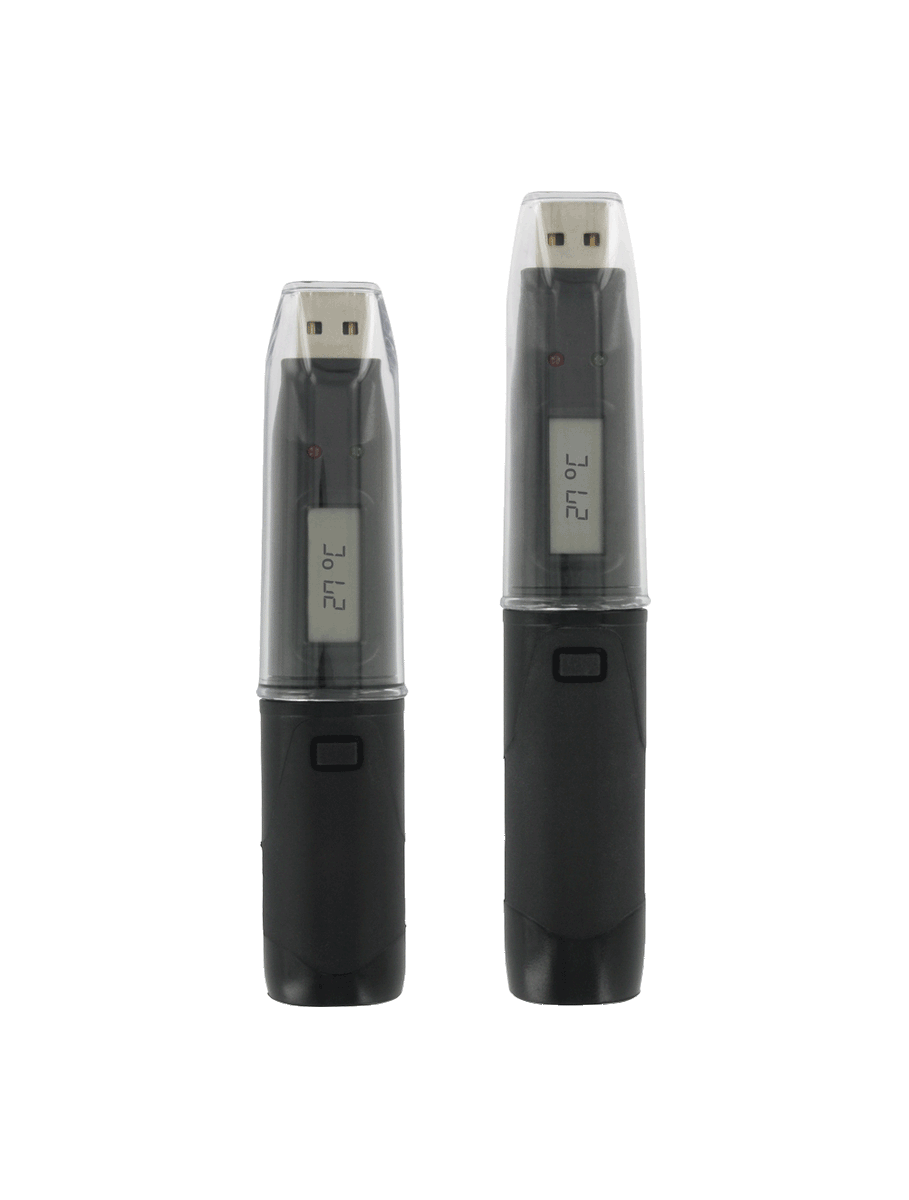

DW-USB-2-LCD | Compact USB data logger | temperature/humidity/dew point input | with LCD. | Dwyer

Compact USB data logger, temperature/humidity/dew point input, with LCD.

Brand: DwyerSKU: DW-USB-2-LCD

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DW-USB-2-LCD

Jump to: Overview & Specifications Reviews

Overview Details for DW-USB-2-LCD

See catalog product page for full listing

Compact USB data logger | temperature/humidity/dew point input | with LCD.

SERIES DW-USB-LCD COMPACT USB DATA LOGGER WITH DISPLAY

Integral LCD Display, LED Status Indication

The Series DW-USB Compact USB Data Logger allows users to monitor temperature,humidity, dew point, voltage, current, or carbon monoxide almost anywhere, and thendownload stored data by simply plugging the module directly into a PC’s USB port. Thecompact housing can resist moisture up to IP67 when the protective cap is attached,and has built in LED’s to indicate an alarm has been met or the battery is low. Using theincluded Windows® based software, users can set the sampling rate, start time, high/low alarms, and temperature unit.

Specifications

Series: DW-USB-LCD COMPACT USB DATA LOGGER WITH DISPLAY
Category/Type: Test Equipment
Type: Data Loggers
Series: DW-USB-LCD COMPACT USB DATA LOGGER WITH DISPLAY
Range: DW-USB-2-LCD: Temperature: -31 to 176° F (-35 to 80°C); Humidity: 0 to 100% RH; DW-USB-2-HA-LCD: Temperature: -31 to 176° F (-35 to 80°C); Humidity: 0 to 100% RH; DW-USB-6-LCD: K-type: -328 to 2372°F (-200 to 1300°C); J-type: -202 to 1652°F (-130 to 900°C); T-type: -328 to 662°F (-200 to 350°C).
Accuracy: DW-USB-2-LCD: Temperature ±1°F (±0.5°C) Humidity ±3.0%; DW-USB-2-HA-LCD: Temperature ±0.6°F (±0.3°C); Humidity ±2.0%; DW-USB-6-LCD: ±2°F (±1°C).
Resolution: Temperature: 1°F (0.5°C); Humidity: 0.5% RH.
Memory Size: Thermocouple models: 32510 readings; Temperature/humidity models: 16382 readings.
Sampling Mode: Continuous with data rollover.
Sampling Rate: Selectable from 10 seconds to 12 hours for temperature/humidity models; 1 second to 12 hours for thermocouple models.
Display: 2.5 digit LCD.
Computer Requirements: Windows® 2000; Windows® XP; Windows® 7; Windows VISTA® 32-bit or 64-bit operating systems.
Power Requirements: 3.6 V 1/2 AA lithium metal battery; included; user-replaceable.
Housing: ABS plastic blend.
Alarms: Programmable high/low.
Interface: USB port.
Weight: Temperature/humidity models 1.6 oz (45.4 g); Thermocouple models 1.8 oz (51 g).
Agency Approval: CE; RoHS.
