DS-300-2-1/2-LV | Flow sensor | 2-1/2
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$257.38
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

The product is not cancelable or returnable unless found defective

Speak With a Technical Expert

Image for Technical Expert

Documents: DS-300-2-1/2-LV

DS-300-2-1/2-LV | Flow sensor | 2-1/2" pipe size | without valves. | Dwyer

Flow sensor, 2-1/2" pipe size, without valves.

Brand: DwyerSKU: DS-300-2-1/2-LV
Dwyer | DS-300-2-1/2-LV

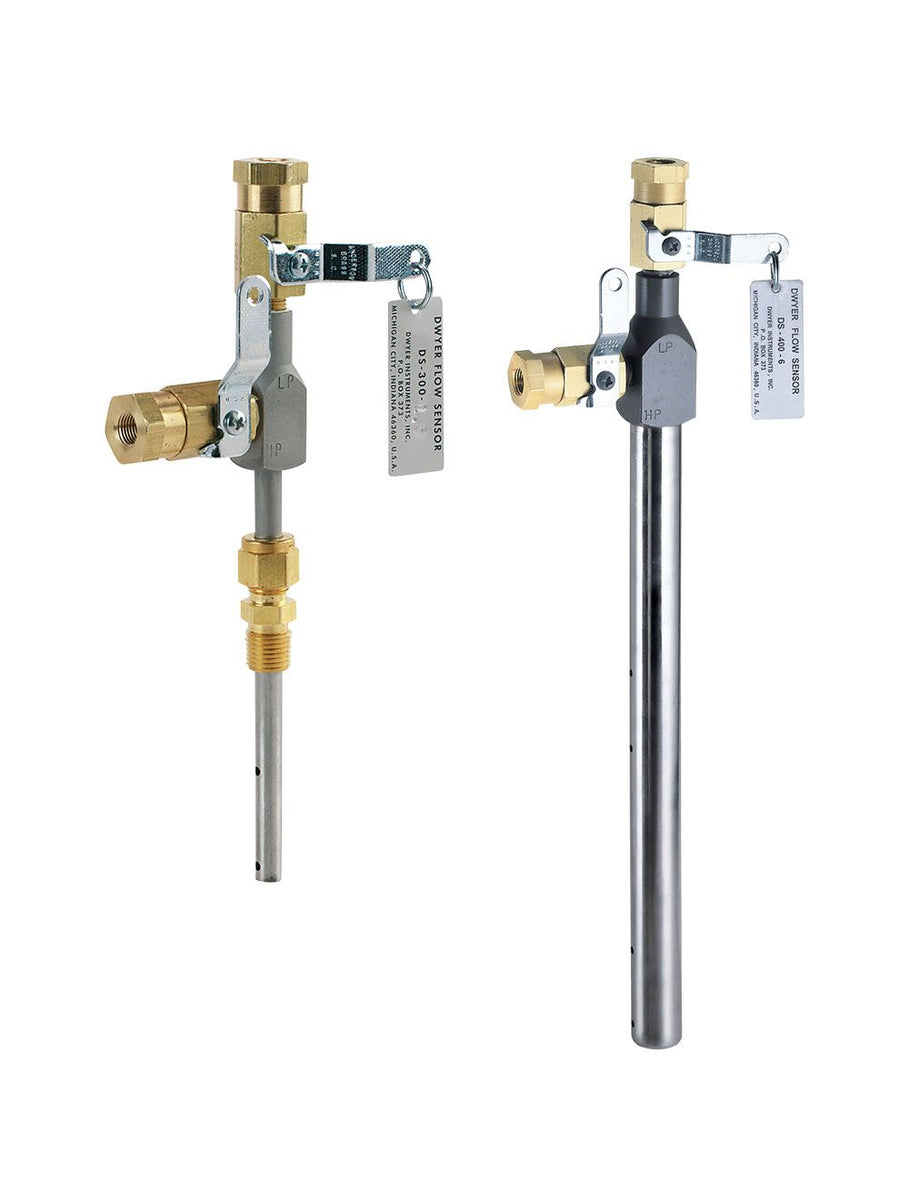

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DS-300-2-1/2-LV

Overview Details for DS-300-2-1/2-LV

See catalog product page for full listing

Flow sensor | 2-1/2" pipe size | without valves.

Series DS In-Line Flow Sensors

Use with the Dwyer® Differential Pressure Gages or Transmitters

The Series DS In-Line Flow Sensors are two Series of averaging Pitot tubes for compatible gases and liquids that provide accurate and convenient flow rate sensing, for schedule 40 pipe, when purchased with suitable differential pressure gage with appropriate range.

The Series DS-300 Averaging Flow Sensors are designed to be inserted in the pipeline through a compression fitting and available for pipe sizes from 1 to 10" (2.5 to 25.4 cm). Accessories include adapters with 1/4" SAE 45° flared ends compatible with hoses supplied with the Model A-471 Portable Capsuhelic® Gage Kit.

The Series DS-400 Averaging Flow Sensors are designed for insertion lengths up to 24" (61 cm) and include a pair of 1/8" NPT x 1/4" SAE 45° flared adapters which are compatible with hoses used in the Model A-471 Portable Capsuhelic® Gage Kit. The supplied solid brass mounting adapter has a 3/4" dia. compression fitting to lock in required insertion length and a 3/4" male NPT thread for mounting in a threaded branch connection (not included).

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • Remediation
  • Natural, flare, flue, stack gas
  • Boiler feedwater
  • Cooling water
  • Superheated, saturated, or geothermal steam
  • Combustion or compressed air
  • Oil flow monitoring
  • Multiple sensing point measurement and built-in averaging capability eliminatesthe need for “traversing” the flowing stream with single point velocity pressuremeasurement saving time
  • Extremely reliable, proven technology, Pitot tubes, have been used in flowmeasurement for years
  • All models include convenient and quick-acting quarter-turn ball valves to isolate thesensor for zeroing with 1/8" female NPT valve assembly process connections.
  • Furnished with instrument shut-off valves on both pressure connections with 1/8"female NPT connections rated at 200 psig (13.7 bar) and 200°F (93.3°C)
  • Where valves are not required, they can be omitted at reduced cost
  • The Series DS-400 Averaging Flow Sensors are quality constructed from extrastrong 3/4" dia. stainless steel to resist increased forces encountered at higher flowrates with both air and water
  • Economical flow indication when used with appropriate differential pressure gage
  • Rugged construction yields, non-clogging, stable design

Specifications

Series
DS In-Line Flow Sensors
Category/Type
Flow
Type
Flow Sensors
Series
DS In-Line Flow Sensors
