Documents: DPMW-402P

Instruction Manual Series DPMW Catalog Page More Info

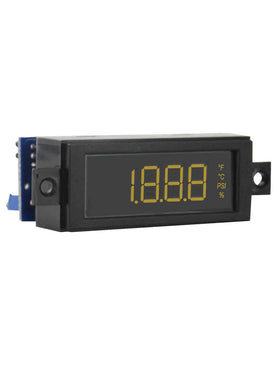

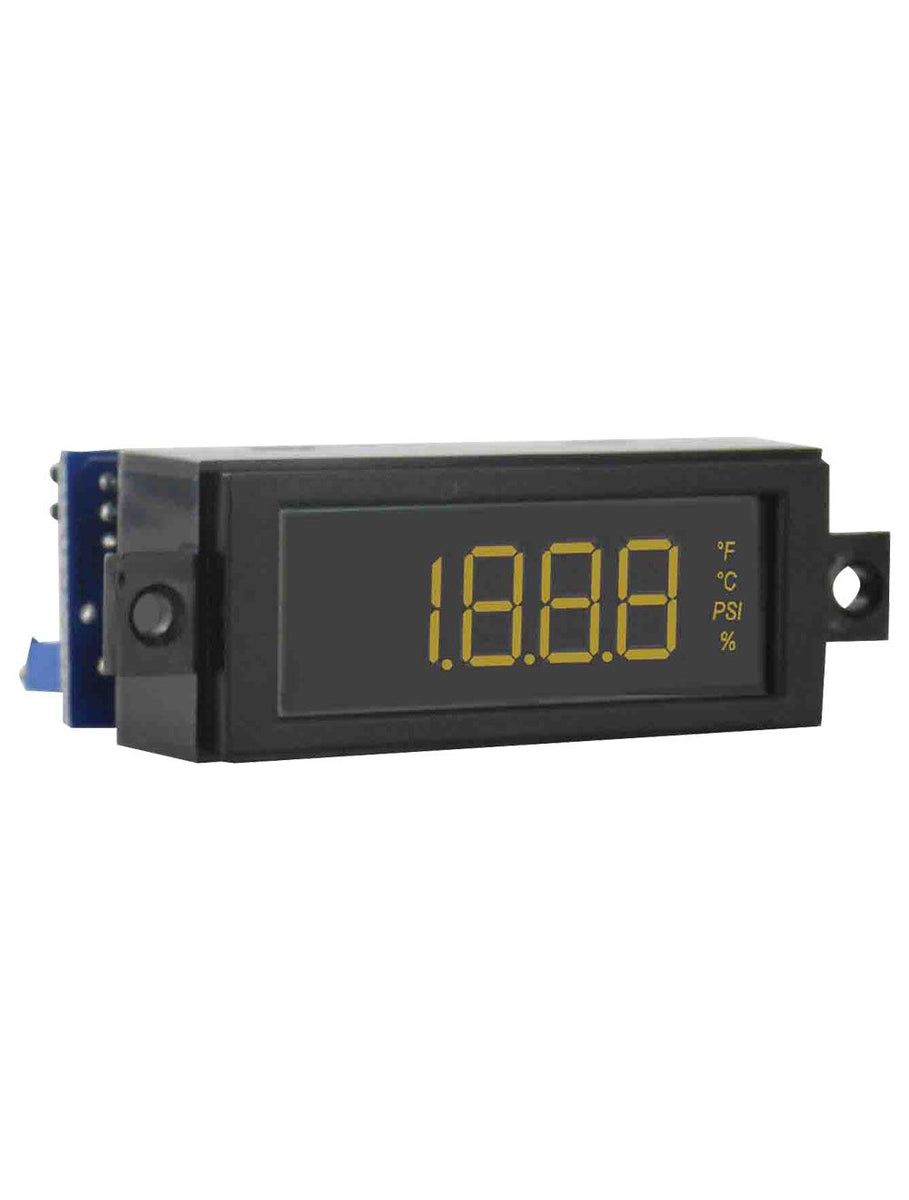

DPMW-402P | LCD Digital panel meter with power engineering units | loop powered 4 to 20 mA | green segments | no backlight. | Dwyer

LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, green segments, no backlight.

Brand: DwyerSKU: DPMW-402P

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPMW-402P

Jump to: Overview & Specifications Reviews

Overview Details for DPMW-402P

See catalog product page for full listing

LCD Digital panel meter with power engineering units | loop powered 4 to 20 mA | green segments | no backlight.

SERIES DPMW LCD DIGITAL PANEL METER

3-1/2 Digits, Window Mount

The Series DPMW LCD Digital Panel Meter is designed with a 3-1/2 digit, high contrast LCD. It can be quickly installed in a 2.31" (58.4 mm) x 0.91" (22.9 mm) panel cutout. This unit accepts a 4 to 20 mA input signal from a pressure, level, flow, or temperature transmitter and requires a 24 VDC power supply to illuminate the colored segments.

Product Applications

Display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters

Window mounts
3-1/2 digit display with 0.45" (11 mm) segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
