DFMT-40A | 1-1/2" NPT Digital Flow Transmitter | range 6.6 to 105 GPM (1.5 to 23.85 m3/h) | Dwyer
1-1/2" NPT Digital Flow Transmitter, range 6.6 to 105 GPM (1.5 to 23.85 m3/h)

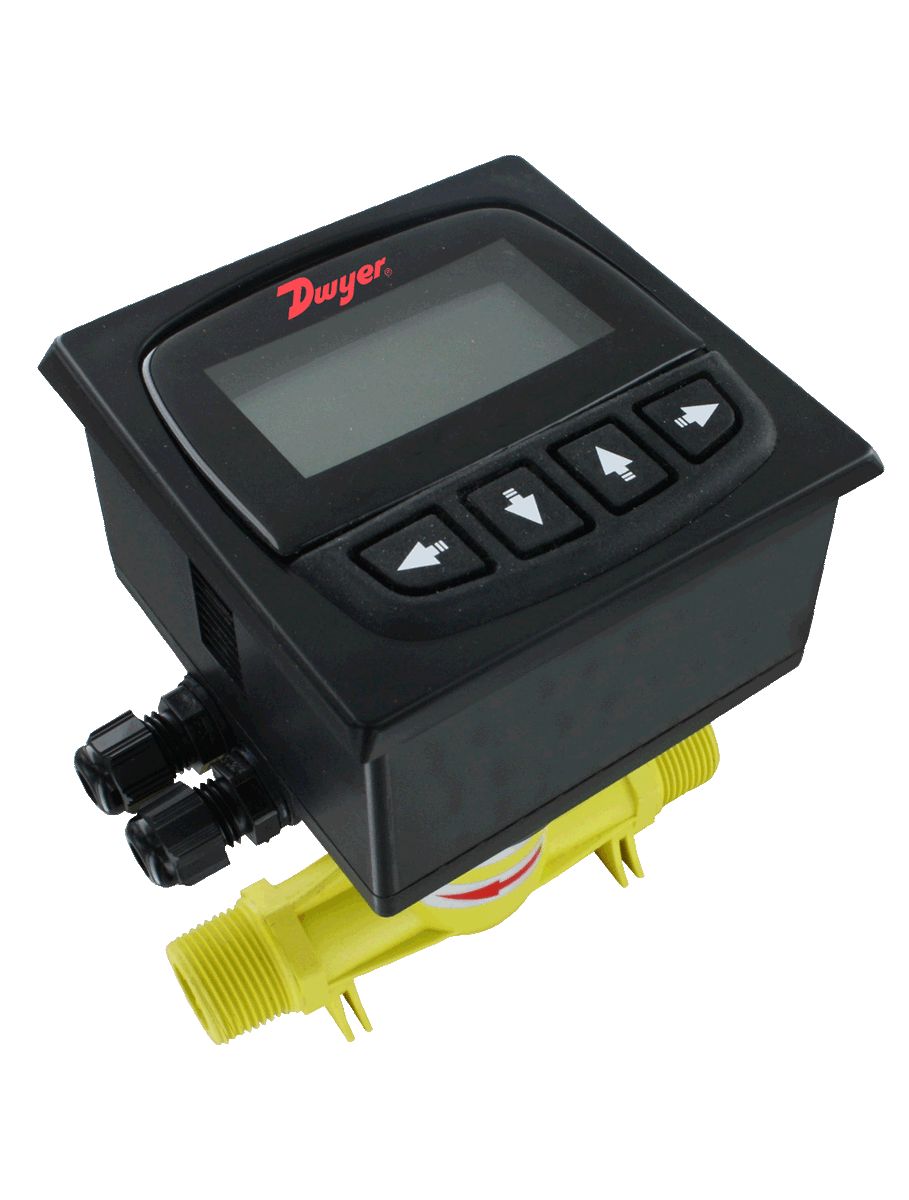

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DFMT-40A
Documents and manuals
Dwyer DFMT-40A Documents
Overview
Details for DFMT-40A
See catalog product page for full listing
1-1/2" NPT Digital Flow Transmitter | range 6.6 to 105 GPM (1.5 to 23.85 m3/h)
Series DFMT Digital Paddlewheel Flow Transmitter
Flow and Total Indication, Easy to Read LCD Display, 4 to 20 mA or Pulse Output
The Series DFMT Digital Paddlewheel Flow Transmitter provides instantaneous, aswell as totalizing flow monitoring. The unit offers a user selectable 4 to 20 mA or pulse output with compact display.
Product Applications
- Cooling water monitoring
- Cooling towers
- Chemical proportioning or blending
- Industrial water & wastewater treatment
- Fluctuating fluid conductivity applications
- Reverse osmosis systems
- The large backlit LCD display defines instantaneous as well as cumulative flow withvisual indication bar designating percent of max flow
- Long operation life with high accuracy paddlewheel technology and corrosionresistant PVDF sensor
- Totalizer is user resettable at any time ideal for single batch totalization
- Security password protecting prevents any unauthorized changes
Specifications
- Series
- DFMT Digital Paddlewheel Flow Transmitter
- Category/Type
- Flow
- Type
- Flow Transmitters
- Series
- DFMT Digital Paddlewheel Flow Transmitter
- Service
- Compatible clean liquids.
- Range
- See model chart on catalog page.
- Wetted Materials
- Sensor and impeller: PVDF; Shaft: Ceramic; O-rings: Fluoroelastomer.
- Accuracy
- ±1.5% FS.
- Repeatability
- ±0.5% FS.
- Output
- Analog: 4 to 20 mA (750 Ω max. loop resistance);Pulse: NPN square wave output; Frequency: 0 to 2 kHz (adjustable); Pulse width:0 to 1000 ms (adjustable).
- Electrical Connections
- Removable screw terminal.
- Temperature Limits
- Process: -4 to 194°F (-20 to 90°C);Ambient: -4 to 149°F(-20 to 65°C).
- Pressure Limit
- 145 psi (1.0 MPa).
- Power Requirements
- 12 to 24 VDC.
- Power Consumption
- 2 W.
- Display
- 2.38 x 1.25" (60.33 x 31.75 mm) LCD.
- Totalizing Display Maximum
- 9;999;999;999.
- Process Connection
- See model chart on catalog page.
- Enclosure Rating
- IP65.
- Enclosure Material
- ABS plastic.
- Weight
- See model chart on catalog page.
