CSE-KN-181606 | 18" x 16" x 6" | carbon steel | NEMA 1 enclosure with knockouts | Dwyer
18" x 16" x 6", carbon steel, NEMA 1 enclosure with knockouts
Documents and manuals
Dwyer CSE-KN-181606 Documents
Overview
Details for CSE-KN-181606
18" x 16" x 6" | carbon steel | NEMA 1 enclosure with knockouts
SERIES CSE-KN CARBON STEEL ENCLOSURE WITH KNOCKOUTS

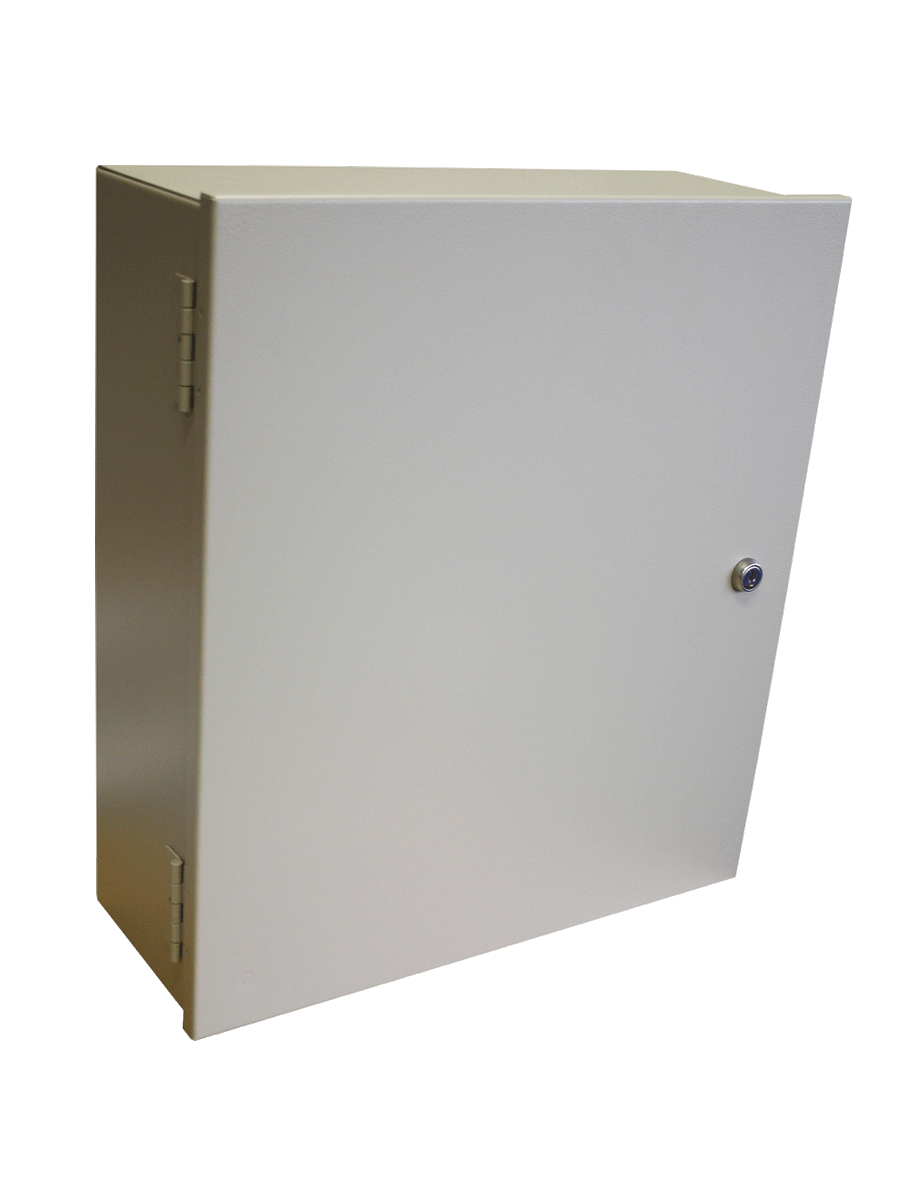

The Series CSE-KN Carbon Steel Enclosures are spot-welded, wallmounted enclosures designed to house electrical controls, instruments, andcomponents in general purpose areas with knockouts to allow cords to pass easilyinto the unit. The door features butt hinges that allow 180° of rotation, a keylockingquarter turn latch, and a ground stud. Mounting holes on the back of the enclosureallow for versatile mounting. Each enclosure includes a sub-panel with a 2" x 2" (50.8mm x 50.8 mm) mounting grid mounted on standoffs and lock with keys. This seriesis the perfect accessory for a variety of instrumentation in need of general protectionand extra security.
Product Applications
- Housing controls and gages
Specifications
- Series
- CSE-KN CARBON STEEL ENCLOSURE WITH KNOCKOUTS
- Category/Type
- Process Control
- Type
- Control Enclosures
- Series
- CSE-KN CARBON STEEL ENCLOSURE WITH KNOCKOUTS
- Materials
- Carbon steel.
- Rating
- NEMA 1 (IP30).
- Dimensions
- See chart on catalog page.
- Thickness
- 0.060" (1.52 mm) for enclosures <24" (61 cm) wide; 0.075" (1.91 mm)for enclosures = 24" (61 cm) wide; 0.048" (1.22 mm) for sub-panels; 0.078" (1.98mm) for mounting straps.
- Weight
- See chart on catalog page.
- Agency Approvals
- CSA; cULus.(Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
