CSE-3R-161206

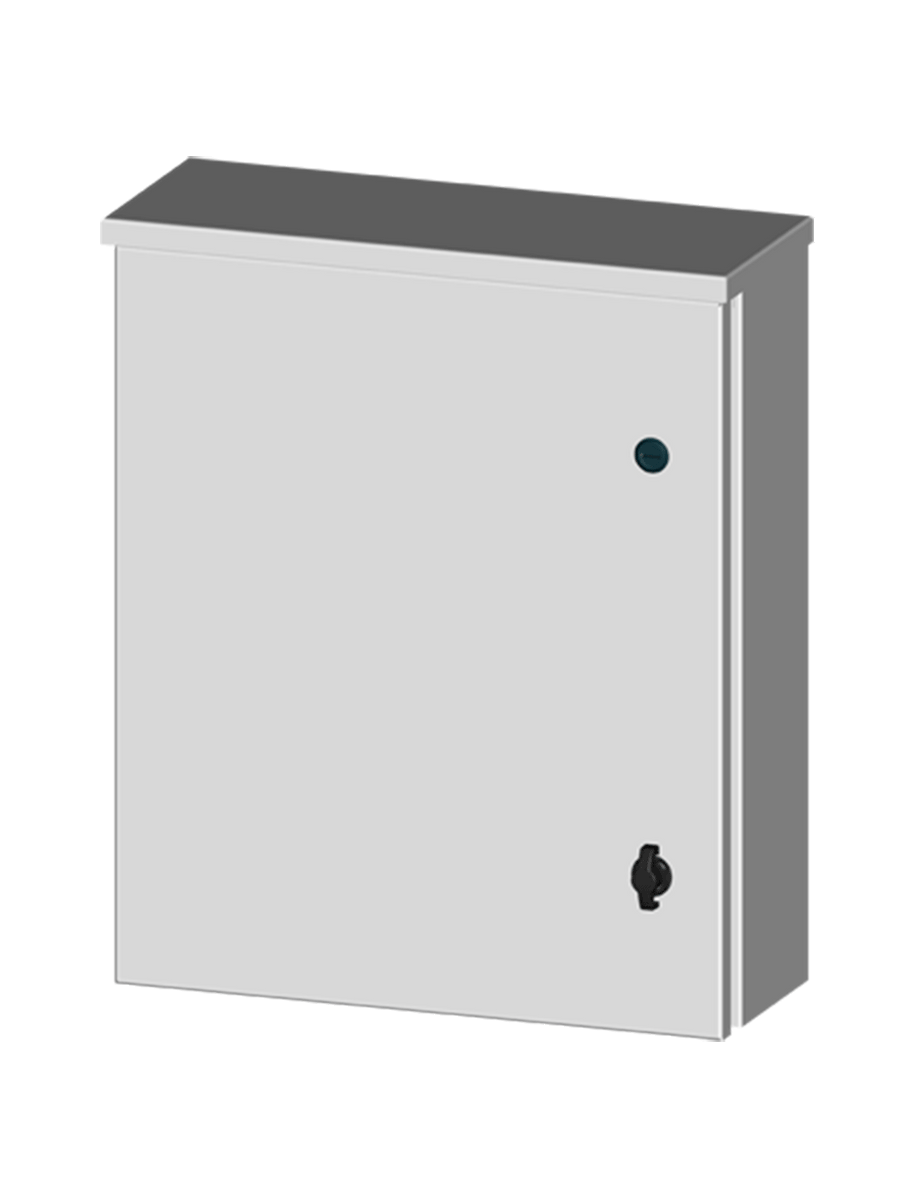

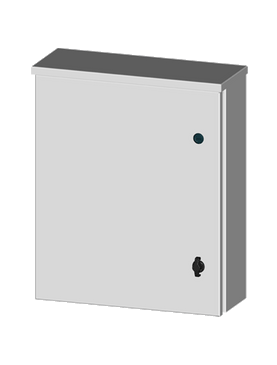

SERIES CSE-3R GALVANNEALED STEEL ENCLOSURES
The Series CSE-3R Carbon Steel Enclosures are spot-welded, wall mounted enclosures designed to house electrical controls, instruments, and components in an outdoor environment. The enclosure features concealed hinges that allow 180° of rotation, a quarter turn latch that can be opened/closed with a screwdriver, and ground studs on the door and body. Mounting holes on the back of the enclosure allow for versatile mounting and standoffs provide easy installation of optional sub-panels. A rain cap and an oil resistant door gasket will protect instruments from rain, sleet, and snow. Each unit includes a 3/8-16 grounding kit and has the option of including a sub-panel, mounting strap, and/or a drip shield. This series is the perfect accessory for a variety of instrumentation in need of outdoor protection.
Product Applications
- Housing controls and gages
Specifications
- Series
- CSE-3R GALVANNEALED STEEL ENCLOSURES
- Category/Type
- Process Control
- Type
- Control Enclosures
- Series
- CSE-3R GALVANNEALED STEEL ENCLOSURES
- Materials
- Galvannealed steel enclosure; All other components: Carbon steel.
- Rating
- NEMA 3R (IP32).
- Dimensions
- See chart for enclosure dimensions; Sub-panel height = enclosure height- 3" (76 mm); Sub-panel width = enclosure width - 3" (76 mm); Mounting strap width =enclosure width - 4" (102 mm); Drip shield width = enclosure width.
- Thickness
- 0.048" (1.22 mm) for drip shields; 0.060" (1.52 mm) for enclosures < 24"wide; 0.075" (1.91 mm) for enclosures = 24" wide; 0.125" (3.18 mm) for sub-panels;0.078" (1.98 mm) for mounting straps.
- Weight
- See chart on catalog page.
- Agency Approvals
- CSA; cULus. (Meets the technical requirements of EU Directive2011/65/EU (RoHS II).
