CCT70-100 | Current transformer | 100/150/200 A input | 4-20 RMS output | split core. | Dwyer
Current transformer, 100/150/200 A input, 4-20 RMS output, split core.

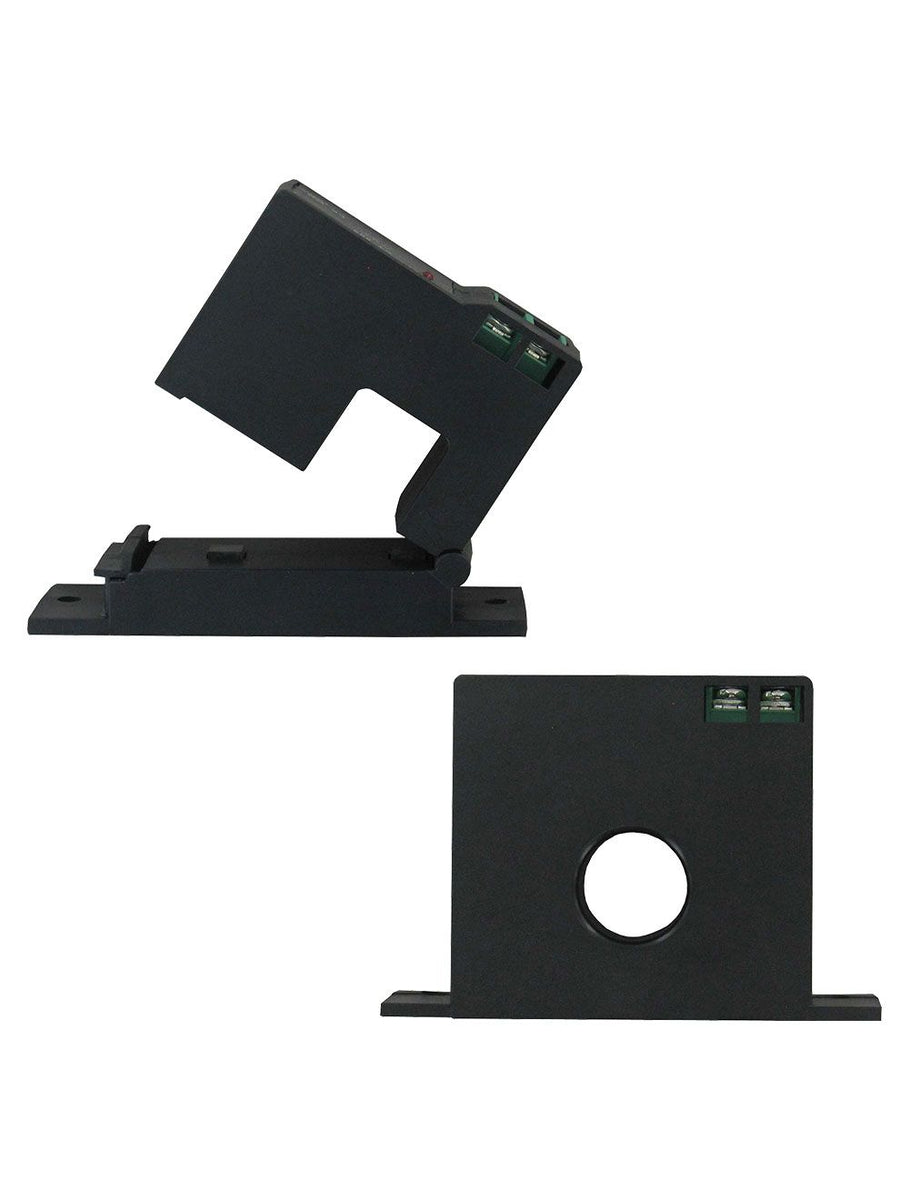

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CCT70-100
Documents and manuals
Dwyer CCT70-100 Documents
Overview
Details for CCT70-100
See catalog product page for full listing
Current transformer | 100/150/200 A input | 4-20 RMS output | split core.
Series CCT60/70 True RMS Current Transformer
SeriesCCT60
The Series CCT60/70 True RMS Current Transformers are a low cost alternative for providing true RMS outputs on distorted AC waveforms. True RMS outputs are ideal for nonlinear loads or noisy circuits. For existing installations, split core models can be installed without disconnecting cables. Each model offers three jumper selectable ranges to reduce the risk of ordering the wrong model.
Product Applications
- BAS
- HVAC
- Integral mounting flange for quick installation
- Solid core or split core configurations
- Jumper selectable range
- True RMS
Specifications
- Series
- CCT60/70 True RMS Current Transformer
- Category/Type
- Process Control
- Type
- Current Transformers / Switches
- Series
- CCT60/70 True RMS Current Transformer
- Amperage Range
- Up to 200 A (depending on model).
- Output
- 4 to 20 mA; true RMS.
- Power Requirements
- 24 VDC nominal.
- Accuracy
- 1%.
- Temperature Limits
- -22 to 158ºF (-30 to 70ºC).
- Humidity Limits
- 0 to 95% (non-condensing).
- Response Time
- 250 ms to 90%.
- Isolation Voltage
- 2000 V.
- Frequency
- 10 to 400 Hz.
- Enclosure Rating
- UL; 94 V-O flammability rated; ABS plastic housing.
- Approvals
- CE; cUL; UL.
