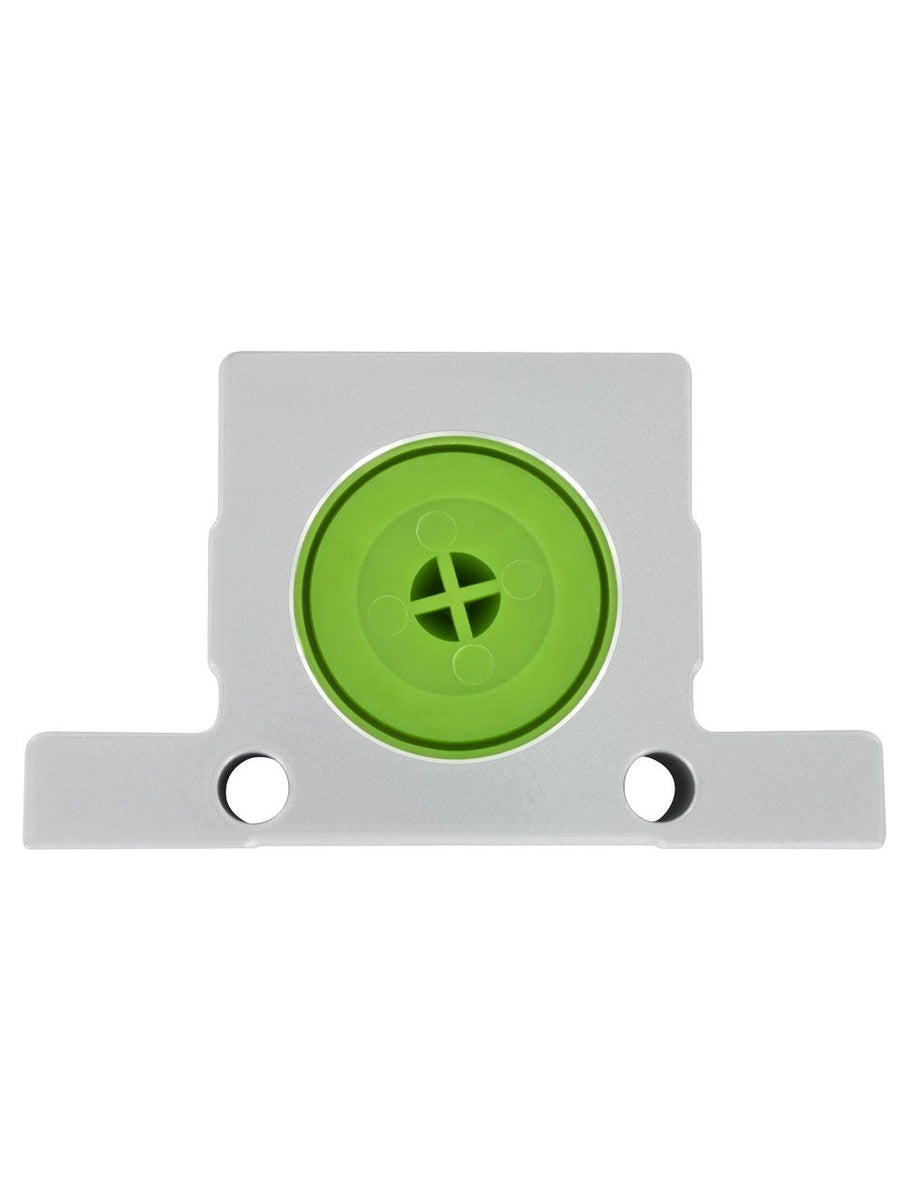

BPV-5 | Pneumatic ball vibrator. | Dwyer

Pneumatic ball vibrator.

Brand: DwyerSKU: BPV-5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BPV-5

Jump to: Overview & Specifications Reviews

Overview Details for BPV-5

See catalog product page for full listing

Pneumatic ball vibrator.

Series BPV Pneumatic Ball Vibrator

Small Size and Light Weight

Series BPV Pneumatic Ball Vibrators are the best choice for bridge-break in thin walls and small tanks. This model can be used in vibrating separators, vibrating conveyors, and against electroplating build-up. It can also be used on material compacted while packing or sand compacted while molding. The aluminum body is equipped with a steel ring and ball inside that is tightly closed by plastic side covers. Vibration is caused when the internal ball, pushed by compressed air, runs in a rotary motion to produce centrifugal force.

For additional choices, see Series PRV .

The body is made of high strength aluminum alloy.
Small in size and light-weight.
Can be used in high humidity or dusty working areas.
Frequency and amplitude of vibration can be adjusted as needed.

Specifications

Series: BPV Pneumatic Ball Vibrator
Category/Type: Level
Type: Bin Vibrators
Series: BPV Pneumatic Ball Vibrator
Temperature Limits: 212ºF (100ºC).
Noise Level: 75-95 dBA.
Supply Pressure: 29 to 87 psi (2 to 6 bar).
Air Consumption: See chart on Catalog page.
Air Connections: 1/4" BSPT female with 1/4" OD push to connect adapter on BPV-1; BPV-2; BPV-3; BPV-4; BPV-5. 3/8" BSPT female with 3/8" OD push to connect on BPV-6. Also includes muffler for exhaust port.
Housing Material: Aluminum.
