BDL-K2 | Temperature and humidity button data logger kit with (2) BDL-2 | (1) USB interface | and (1) clip. | Dwyer

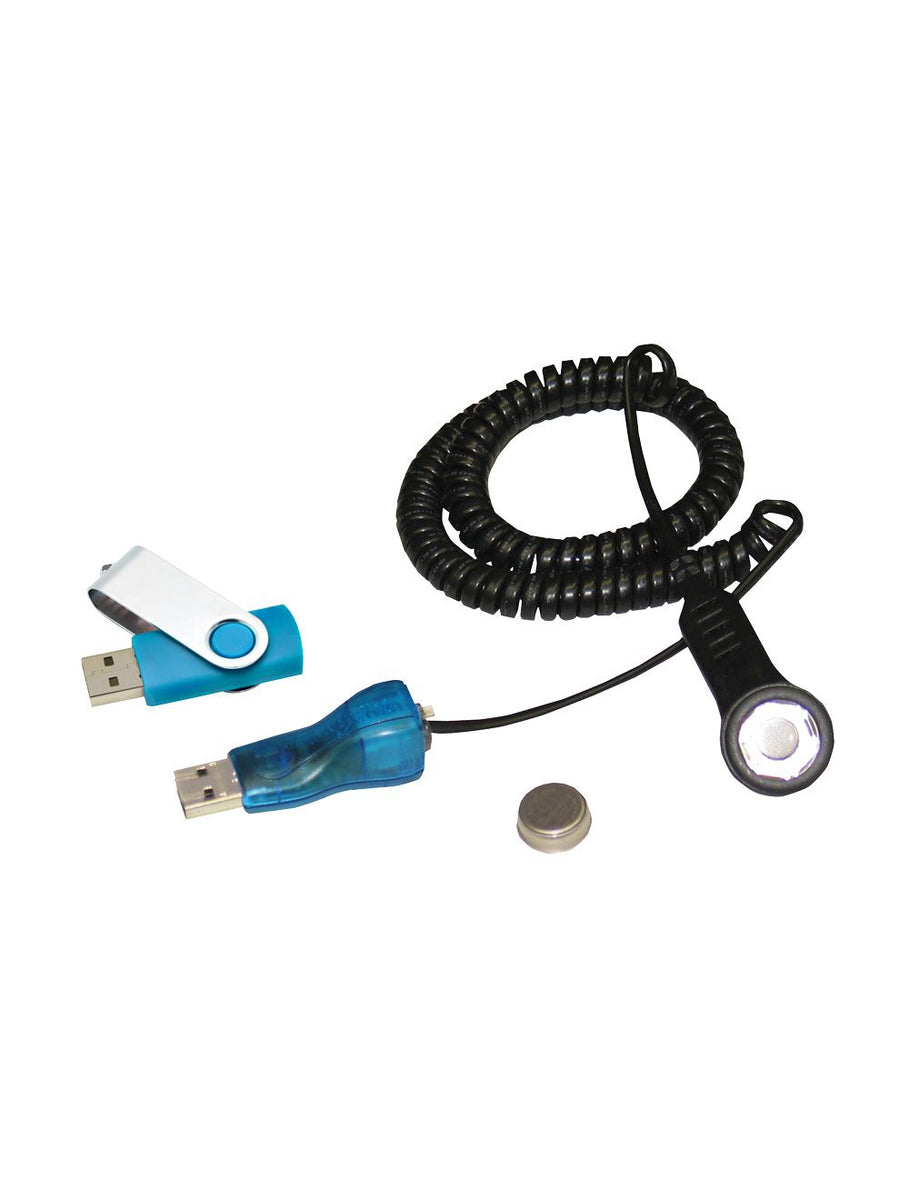

Temperature and humidity button data logger kit with (2) BDL-2, (1) USB interface, and (1) clip.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BDL-K2
Documents and manuals
Dwyer BDL-K2 Documents
Overview
Details for BDL-K2
See catalog product page for full listing
Temperature and humidity button data logger kit with (2) BDL-2 | (1) USB interface | and (1) clip.
Series BDL Button Data Logger
Self-Powered, Compact Size, USB Interface
The Series BDL Button Data Logger records temperature and humidity in applications where size and cost effectiveness are vital. Housed in a compact stainless steel case, the BDL is durable in hostile environments, while also being able to be inserted in small items and packages. The Series BDL-K logger kit includes 2 buttons, 2 magnets, an interface cable, and a plastic button holder.
Product Applications
- Food processing verification
- Pharmaceutical storage
- Transportation of temperature sensitive goods
- HVAC system testing and balancing
- Compact to fit in small areas and durable to work in hostile environments
- Self-powered unit gives no need for external power supply
- Magnetic mounting for quicker installation
Specifications
- Series
- BDL Button Data Logger
- Category/Type
- Test Equipment
- Type
- Data Loggers
- Series
- BDL Button Data Logger
- Range
- BDL-1: -40 to 185°F(-40 to 85°C); BDL-2: -4 to 185°F(-20 to 85°C); 0 to 100% RH.
- Memory Size
- BDL-1: 2048 readings;BDL-2: 4096 temperature and 4096humidity readings (low resolution); 2048temperature and 2048 humidity readings(high resolution).
- Accuracy
- BDL-1: ±1.5°F (±1°C) from-22 to 158°F (-30 to 70°C); BDL-2:±0.9°F (±0.5°C) from 14 to 158°F(-10 to 70°C); ±5% RH.
- Resolution
- BDL-1: 8 bit; BDL-2: 8 or11 bit.
- Sampling Method
- Stop on memory fullor continuous recording.
- Sampling Rate
- BDL-1: Selectable from1 to 255 min.; BDL-2: Selectable from 1s to 24 hrs.
- Computer Requirements
- Windows ®98; Windows ® 2000; Windows ® ME;Windows NT®; Windows ® XP; andWindows Vista ® operating system with16 MB RAM; one free USB port.
- Power Requirements
- 3 V lithium metalbattery; internal; non-replaceable.
- Battery Life
- BDL-1: 10 years (approx);BDL-2: 5 years (approx).
- Alarms
- Programmable high/low.
- Interface
- USB port (cable included withkits).
- Housing Material
- 305 SS.
- Weight
- 0.14 oz (4 g).
