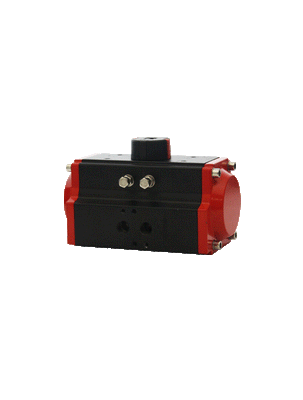

ACT-SR14 | Spring Return Pneumatic Actuator | 18350 in-lb | Dwyer
Spring Return Pneumatic Actuator, 18350 in-lb
Documents and manuals
Dwyer ACT-SR14 Documents
Overview
Details for ACT-SR14
Spring Return Pneumatic Actuator | 18350 in-lb
SERIES ACT PNEUMATIC AND ELECTRIC ACTUATORS
The W.E. Anderson Series ACTActuators are available in eitherpneumatic or electric models. The widerange of torques and voltages means thereis an actuator for almost any application.The standard ISO 5211 mountingconfiguration makes installation to anyvalve or damper quick and simple.W.E. Anderson pneumatic ACT models area compact rack-and-pinion design with asymmetrical structure that ensures fast andsteady action, high precision and highoutput power. The corrosion resistantanodized aluminum body is designed towithstand the harsh and abusive industrialenvironments and provide reliable service.We offer double acting and spring returnmodels in a variety of sizes to fit anyapplication.
W.E. Anderson electric ACT models areavailable in two-position or modulatingconfigurations and NEMA 4X or NEMA 7rated enclosures. All electric actuatorsutilize a high grade powder coatedaluminum enclosure with visual indicators. The two-position models come standardwith two auxiliary switches, and the modulatingmodels offer an output for positionmonitoring. Certain models are equippedwith manual overrides allowing theoperator to cycle the valve manually forinstallation or maintenance checks.
Product Applications
- Designed for quarter turn valve or damper control
- ISO 5211 Mounting configuration foreasy installation
- Pneumatic actuators offer corrosion resistance anodized finish
- NAMUR mounting configuration on pneumatic actuators
- Two-position electric actuators include auxiliary limit switches
- Modulating electric actuators offer an output for position monitoring
Specifications
- Series
- ACT PNEUMATIC AND ELECTRIC ACTUATORS
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Ball
- Series
- ACT PNEUMATIC AND ELECTRIC ACTUATORS
- Pneumatic “DA” and “SR” Series
- Type
- DA series is double-acting andSR series is spring return (rack andpinion).
- Normal Supply Pressure
- DA: 40 to 115 psi (2.7 to 7.9 bar);SR: 80 psi (5.5 bar).
- Maximum Supply Pressure
- 120 psi (8.6 bar).
- Air Connections
- DA01: 1/8" female NPT;DA02 to DA14: 1/4" female NPT;SR02 to SR14: 1/4" female NPT.
- Housing Material
- Anodized aluminum body and epoxy coated aluminum end caps.
- Temperature Limits
- -40 to 176°F (-40to 80°C).
- Accessory Mounting
- NAMUR standard.
- Electric “TD” and “MD” Series
- Power Requirements
- 110 VAC; 220 VAC; 24 VAC or 24 VDC (MDmodels not available in 24 VDC).
- Power Consumption
- See manual.
- Cycle Time (per 90°)
- TD01: 4 s;MD01: 10 s;TD02 and MD02: 20 s;TD03 and MD03: 30 s;TD04 and MD04: 30 s;TD05 and MD05: 30 s;TD06 and MD06: 45 s;TD07 and MD07: 45 s.
- Duty Rating
- 85%.
- Enclosure Rating
- NEMA 4X (IP67).
- Housing Material
- Powder coated aluminum.
- Temperature Limits
- -22 to 140°F (-30 to 60°C).
- Electrical Connection
- 1/2" female NPT.
- Modulating Input
- 4 to 20 mA.
- Standard Features
- Manual override; position indicator; and TD models comewith two limit switches.
- Electric “TI” and “MI” Series
- Power Requirements
- 110 VAC; 220 VAC; 24 VAC or 24 VDC.
- Power Consumption
- See instruction manual.
- Cycle Time (per 90°)
- See instruction manual.
- Duty Rating
- See instruction manual.
- Enclosure Rating
- NEMA 7; designed to meet hazardous locations: Class I; Group C & D; Class II; Group E; F & G; Division I & II.
- Housing Material
- Powder coated aluminum.
- Temperature Limits
- -40 to 140°F (-40 to 60°C).
- Electrical Connection
- 1/2" female NPT.
- Modulating Input
- 4 to 20 mA.
- Standard Features
- Position indicator and two limit switches.
