ACT-SR04 | Spring Return Pneumatic Actuator | 274 in-lb | Dwyer

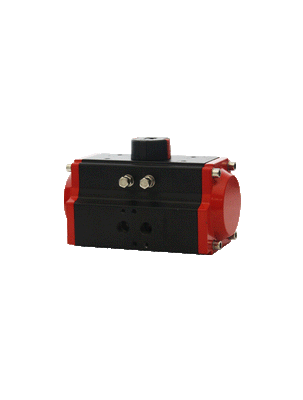

Spring Return Pneumatic Actuator, 274 in-lb

Brand: DwyerSKU: ACT-SR04

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ACT-SR04

Suggested Alternatives

Jump to: Overview & Specifications Reviews

Overview Details for ACT-SR04

See catalog product page for full listing

Spring Return Pneumatic Actuator | 274 in-lb

SERIES ACT PNEUMATIC AND ELECTRIC ACTUATORS

Actuators for Valve and Damper Automation

The W.E. Anderson Series ACTActuators are available in eitherpneumatic or electric models. The widerange of torques and voltages means thereis an actuator for almost any application.The standard ISO 5211 mountingconfiguration makes installation to anyvalve or damper quick and simple.W.E. Anderson pneumatic ACT models area compact rack-and-pinion design with asymmetrical structure that ensures fast andsteady action, high precision and highoutput power. The corrosion resistantanodized aluminum body is designed towithstand the harsh and abusive industrialenvironments and provide reliable service.We offer double acting and spring returnmodels in a variety of sizes to fit anyapplication.

W.E. Anderson electric ACT models areavailable in two-position or modulatingconfigurations and NEMA 4X or NEMA 7rated enclosures. All electric actuatorsutilize a high grade powder coatedaluminum enclosure with visual indicators. The two-position models come standardwith two auxiliary switches, and the modulatingmodels offer an output for positionmonitoring. Certain models are equippedwith manual overrides allowing theoperator to cycle the valve manually forinstallation or maintenance checks.

Product Applications

Designed for quarter turn valve or damper control

ISO 5211 Mounting configuration foreasy installation
Pneumatic actuators offer corrosion resistance anodized finish
NAMUR mounting configuration on pneumatic actuators
Two-position electric actuators include auxiliary limit switches
Modulating electric actuators offer an output for position monitoring

Specifications

Series: ACT PNEUMATIC AND ELECTRIC ACTUATORS
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: ACT PNEUMATIC AND ELECTRIC ACTUATORS
: Pneumatic “DA” and “SR” Series
Type: DA series is double-acting andSR series is spring return (rack andpinion).
Normal Supply Pressure: DA: 40 to 115 psi (2.7 to 7.9 bar);SR: 80 psi (5.5 bar).
Maximum Supply Pressure: 120 psi (8.6 bar).
Air Connections: DA01: 1/8" female NPT;DA02 to DA14: 1/4" female NPT;SR02 to SR14: 1/4" female NPT.
Housing Material: Anodized aluminum body and epoxy coated aluminum end caps.
Temperature Limits: -40 to 176°F (-40to 80°C).
Accessory Mounting: NAMUR standard.
: Electric “TD” and “MD” Series
Power Requirements: 110 VAC; 220 VAC; 24 VAC or 24 VDC (MDmodels not available in 24 VDC).
Power Consumption: See manual.
Cycle Time (per 90°): TD01: 4 s;MD01: 10 s;TD02 and MD02: 20 s;TD03 and MD03: 30 s;TD04 and MD04: 30 s;TD05 and MD05: 30 s;TD06 and MD06: 45 s;TD07 and MD07: 45 s.
Duty Rating: 85%.
Enclosure Rating: NEMA 4X (IP67).
Housing Material: Powder coated aluminum.
Temperature Limits: -22 to 140°F (-30 to 60°C).
Electrical Connection: 1/2" female NPT.
Modulating Input: 4 to 20 mA.
Standard Features: Manual override; position indicator; and TD models comewith two limit switches.
: Electric “TI” and “MI” Series
Power Requirements: 110 VAC; 220 VAC; 24 VAC or 24 VDC.
Power Consumption: See instruction manual.
Cycle Time (per 90°): See instruction manual.
Duty Rating: See instruction manual.
Enclosure Rating: NEMA 7; designed to meet hazardous locations: Class I; Group C & D; Class II; Group E; F & G; Division I & II.
Housing Material: Powder coated aluminum.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Electrical Connection: 1/2" female NPT.
Modulating Input: 4 to 20 mA.
Standard Features: Position indicator and two limit switches.
