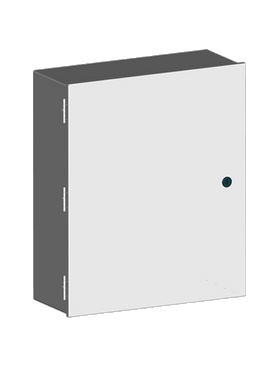

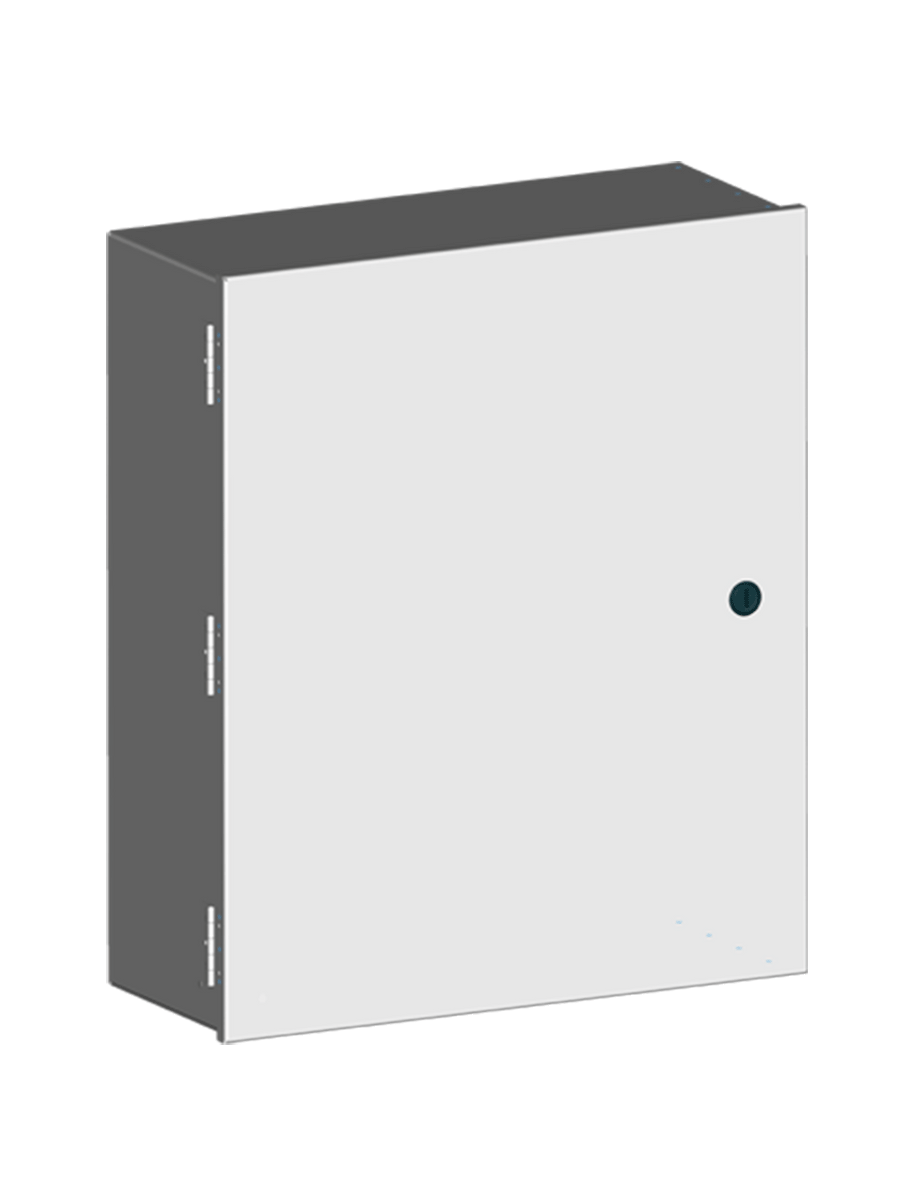

A-CSE-1M-24 | 22" mounting panel for a 24" wide NEMA 1 enclosure | Dwyer

22" mounting panel for a 24" wide NEMA 1 enclosure

Brand: DwyerSKU: A-CSE-1M-24

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-CSE-1M-24

Jump to: Overview & Specifications Reviews

Overview Details for A-CSE-1M-24

See catalog product page for full listing

22" mounting panel for a 24" wide NEMA 1 enclosure

SERIES CSE-N1 CARBON STEEL ENCLOSURES

Wall Mounted, General Purpose Enclosure, UL Approved

The Series CSE-N1 Carbon Steel Enclosures are spot-welded, wall mounted enclosures designed to house electrical controls, instruments, and components in general purpose areas. The door features butt hinges that allow 180° of rotation, a quarter turn latch than can be opened/closed with a screwdriver, and a ground stud. Mounting holes on the back of the enclosure allow for versatile mounting and standoffs provide easy installation of optional sub-panels. Each unit offers optional solid or perforated sub-panel and mounting straps for easy instrument mounting. This series is the perfect accessory for a variety of instrumentation in need of general protection and security.

Product Applications

Housing controls and gages

Specifications

Series: CSE-N1 CARBON STEEL ENCLOSURES
Category/Type: Process Control
Type: Control Enclosures
Series: CSE-N1 CARBON STEEL ENCLOSURES
Materials: Carbon steel.
Rating: NEMA 1.
Dimensions: See chart on catalog page.
Thickness: 0.060" (1.52 mm) for enclosures <24" wide;0.075" (1.91 mm) for enclosures ≥24" wide;0.060" (1.52 mm) for perforated sub-panels;0.075" (1.91 mm) for solid sub-panels;0.078" (1.98 mm) for mounting straps.
Weight: See chart on catalog page.
Agency Approvals: CSA; cULus.(Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
