92S11A22D24 | Electromechanical relay | DPDT | 24 VAC. | Dwyer

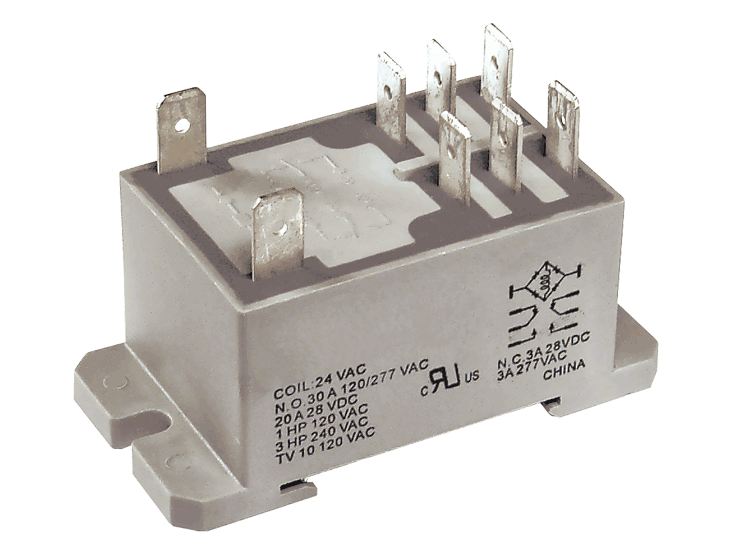

Electromechanical relay, DPDT, 24 VAC.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 92S11A22D24

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer 92S11A22D24 Documents

Series 9 Catalog Page More Info

Overview

Details for 92S11A22D24

See catalog product page for full listing

Electromechanical relay | DPDT | 24 VAC.

Series 9 Electromechanical Relay

30 Amp, SPDT and DPDT Operation

The Series 9 Electromechanical Relays are small in size, features Class F insulation for a max coil temperature of 155°C, quick-connect terminals for simple connection, and is panel mountable. The relays are compact and impervious to shock and vibration.

Product Applications

Motor control
Lighting control
Refrigeration compressor systems

Compact size for flange mounting
Quick-connect terminals to allow for easy installation

Specifications

Series: 9 Electromechanical Relay
Category/Type: Process Control
Type: Relays
Series: 9 Electromechanical Relay
Operating and Load Voltage Range: 12-277 VAC ; 5-110 VDC.
Electrical Connection: Quick-connect tab terminals. SPDT 0.187" coil terminal / 0.25" contact terminal; DPDT 0.25' coil terminal / 0.25" contact terminal.
Switching Operation: SPDT or DPDT.
Electrical Rating: SPDT: NO 30 A @ 240 VAC / 28 VDC; NC 10 A @ 240 VAC / 28 VDC; DPDT: 30 A @ 240 VAC; 20 A @ 28 VDC.
Temperature Limits: Storage: -40 to 185°F (-40 to 85°C); Operation: -40 to 131°F (-40 to 55°C)
Voltage Loss: 2.5 VA (VAC); 1W (VDC).
Cycle Life: 100;000 Cycles (Electrical); 10;000;000 Cycles (Mechanical).
Housing: Polyester resin.
Weight: 1.16 oz (SPDT); 3 oz (DPDT).
Agency Approvals: CE; cULus; (EMR-XXXX-DPDT); cURus (EMR-XXXX-SPDT).
