783XCXM4L-24A | 3PDT ice cube relays | 15 amp rating | 24 VAC 50/60 Hz | coil resistance 103Ω | Dwyer
3PDT ice cube relays, 15 amp rating, 24 VAC 50/60 Hz, coil resistance 103Ω

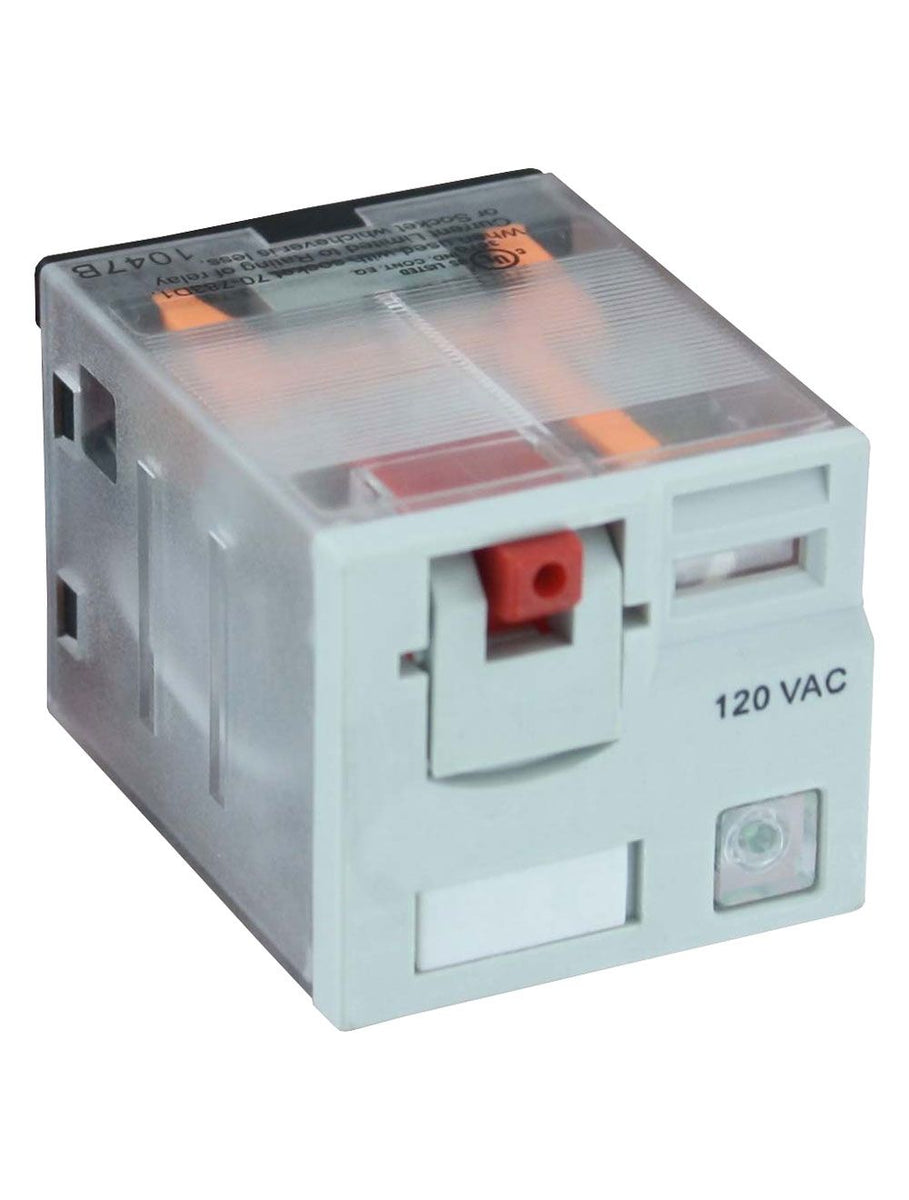

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 783XCXM4L-24A
Documents and manuals
Dwyer 783XCXM4L-24A Documents
Overview
Details for 783XCXM4L-24A
See catalog product page for full listing
3PDT ice cube relays | 15 amp rating | 24 VAC 50/60 Hz | coil resistance 103Ω
Series 783 3PDT Ice Cube Relays
15 Amp, 3PDT Operation
The Series 783 & 784 Ice Cube Relays are full-featured relays that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color coded and a removable lock-down lever holds the test button in place.
Product Applications
- Refrigeration compressor systems
- HVAC motor controls
- Water/wastewater pump control
- Quick installation and replacement using socket mounting
- Simplified diagnosis with flag and LED status indicators and color-coded push-to-test button
Specifications
- Series
- 783 3PDT Ice Cube Relays
- Category/Type
- Process Control
- Type
- Relays
- Series
- 783 3PDT Ice Cube Relays
- Operating and Load Voltage Range
- 24 to 240 VAC; 24 VDC.
- Electrical Connection
- Silver alloy plug-in contacts.
- Switching Operation
- 3PDT or 4PDT.
- Electrical Rating
- 15 A @ 120 VAC50/60 Hz; 12 A @ 277 VAC 50/60 Hz or28 VDC.
- Temperature Limits
- Storage: -40 to 185°F (-40 to 85°C); Operation: -40 to131°F (-40 to 55°C).
- Power Consumption
- 1.5 VA; 1.4 W.
- Cycle Life
- 100;000 cycles (electrical);10;000;000 cycles (mechanical).
- Housing
- Plastic polycarbonate.
- Weight
- 2.1 oz (60 g).
- Agency Approvals
- CE; CSA; cULus; cURus.
