Documents: 782XDXH21-24D

Series 782H Catalog Page More Info

782XDXH21-24D | Hermetically sealed ice cube relays | 4PDT | 5 amp rating | 24 VDC | coil resistance 650 Ω | Dwyer

Hermetically sealed ice cube relays, 4PDT, 5 amp rating, 24 VDC, coil resistance 650 Ω

Brand: DwyerSKU: 782XDXH21-24D

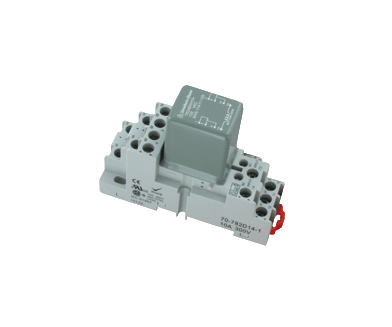

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 782XDXH21-24D

Jump to: Overview & Specifications Reviews

Overview Details for 782XDXH21-24D

See catalog product page for full listing

Hermetically sealed ice cube relays | 4PDT | 5 amp rating | 24 VDC | coil resistance 650 Ω

Series 782H Hermetically Sealed Ice Cube Relays

5 Amp, 4PDT Operation, Class 1 Div II Rated

The Series 782H Hermetically Sealed Ice Cube Relay is suitable for switching up to four circuits in a hazardous environment. It features a hermetically sealed housing and a safety seal to withstand a wash-down. The plug-in socket is easy to mount and remove from crowded DIN rails.

Specifications

Series: 782H Hermetically Sealed Ice Cube Relays
Category/Type: Process Control
Type: Relays
Series: 782H Hermetically Sealed Ice Cube Relays
Operating and Load Voltage Range: 120 VAC; 24 VDC.
Electrical Connection: Silver alloy plug-in contacts.
Switching Operation: 4PDT.
Electrical Rating: 5 A @ 120/240 VAC 50/60 Hz or 30 VDC.
Temperature Limits Storage:: Storage: -40 to 185°F (-40 to 85°C);Operation: -40 to 158°F (-40 to 70°C).
Power Consumption: 1.2 VA; 0.9 W.
Cycle Life: 100;000 cycles (electrical); 10;000;000 cycles (mechanical).
Housing: Metal.
Weight: 1.6 oz (45 g).
Agency Approvals: CE; CSA; RoHS; cUL; UL; cUR; UR.
