782XBXM4L-240A | DPDT ice cube relays | 15 amp rating | 240 VAC 50/60 Hz | coil resistance 15720Ω | Dwyer

DPDT ice cube relays, 15 amp rating, 240 VAC 50/60 Hz, coil resistance 15720Ω

Brand: DwyerSKU: 782XBXM4L-240A

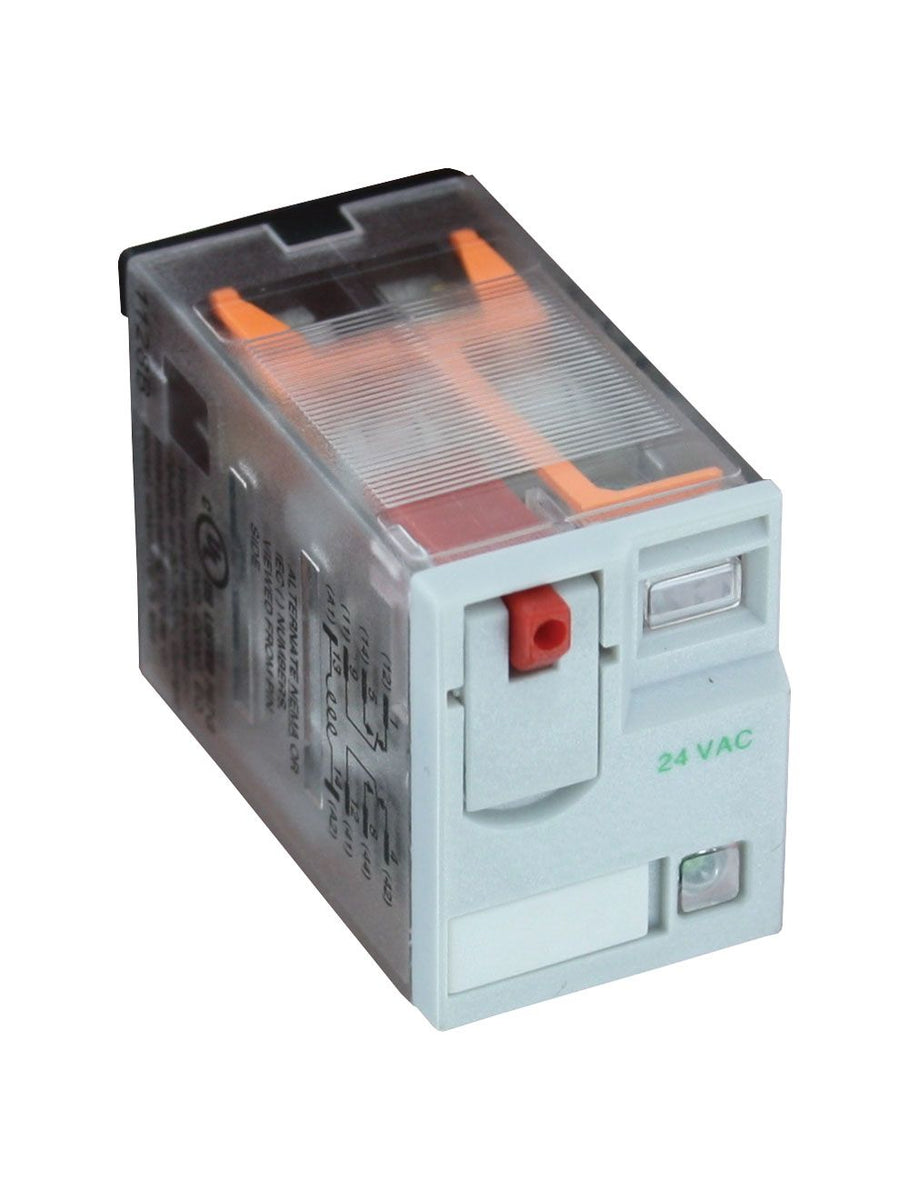

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 782XBXM4L-240A

Jump to: Overview & Specifications Reviews

Overview Details for 782XBXM4L-240A

See catalog product page for full listing

DPDT ice cube relays | 15 amp rating | 240 VAC 50/60 Hz | coil resistance 15720Ω

Series 782 DPDT Ice Cube Relays

15 Amp, DPDT Operation

The Series 782 Electromechanical Ice Cube Relay is a full-featured DPDT relay that can be used to switch two different devices with a single trigger. With a rating of 15 amps, the relay can be used to stop and start small fans, motors, and pumps directly. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color-coded. For testing the operation, a removable lock-down lever holds the test button in place. The clear plastic housing gives a view of the contacts, and there is a removable I.D. tag for labeling the circuit.

Product Applications

Refrigeration compressor systems
HVAC motor controls
Water/wastewater pump control

Clear plastic housing to easily view the contacts
Flag and LED status indicators for visual confirmation of relay state
Socket mounted for quick installation/replacement

Specifications

Series: 782 DPDT Ice Cube Relays
Category/Type: Process Control
Type: Relays
Series: 782 DPDT Ice Cube Relays
Operating and Load Voltage Range: 24 to 240 VAC; 24 VDC.
Electrical Connection: Silver alloy plug-in contacts.
Switching Operation: DPDT.
Electrical Rating: 15 A @ 120 VAC 50/60Hz; 12 A @ 277 VAC 50/60 Hz or 28 VDC (UL);10 A @ 277 VAC 50/60 Hz (CSA).
Temperature Limits: Storage: -40 to 185°F (-40 to 85°C);Operation: -40 to 131°F (-40 to 55°C).
Power Consumption: 1.2 VA; 0.9W.
Cycle Life: 100;000 cycles (electrical); 10;000;000 cycles (mechanical).
Housing: Plastic polycarbonate.
Weight: 1.3 oz (36 g).
Agency Approvals: CE; CSA; RoHS; cUL; UL; cUR; UR.
