781XAXRM4L-24D | SPDT ice cube relays | 15 amp rating | 24 VDC | coil resistance 750Ω | Dwyer

SPDT ice cube relays, 15 amp rating, 24 VDC, coil resistance 750Ω

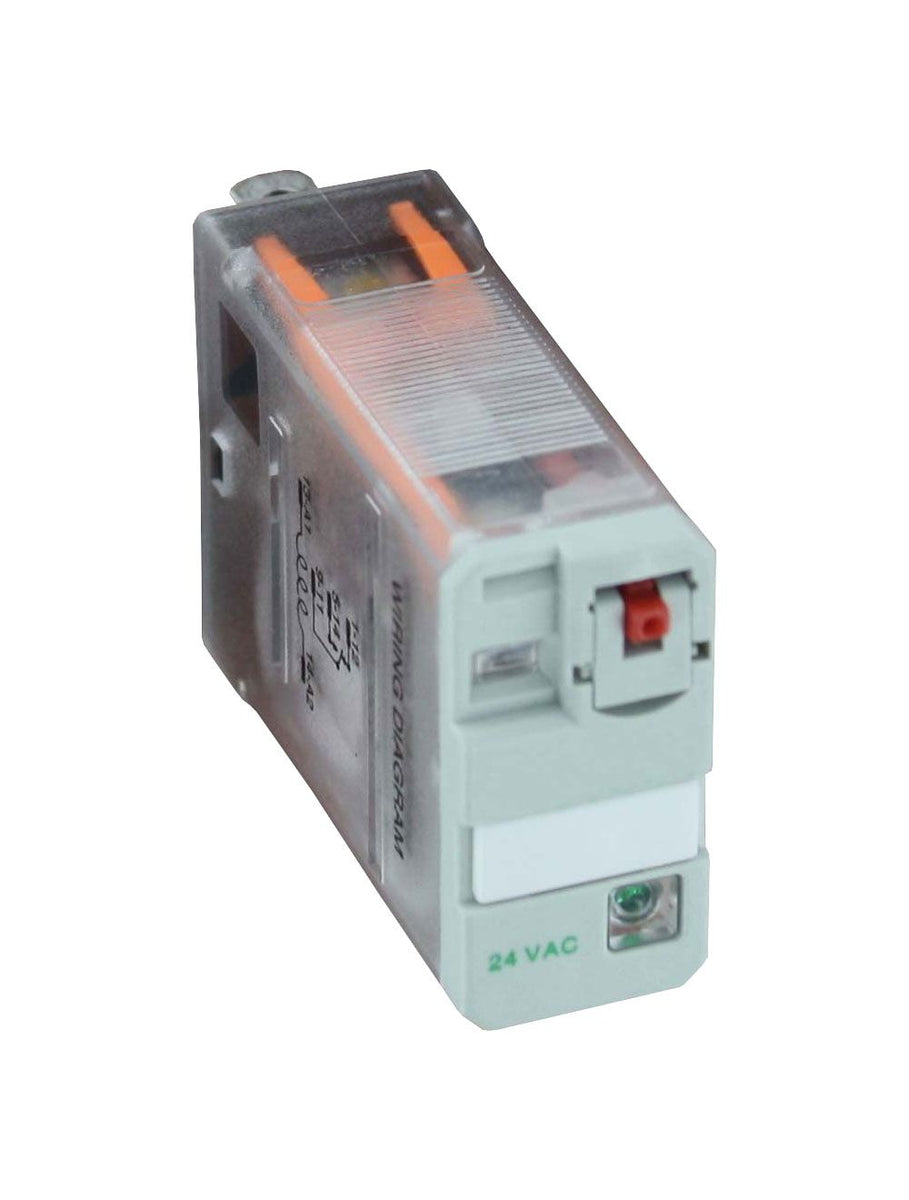

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 781XAXRM4L-24D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer 781XAXRM4L-24D Documents

Series 781 Catalog Page More Info

Overview

Details for 781XAXRM4L-24D

See catalog product page for full listing

SPDT ice cube relays | 15 amp rating | 24 VDC | coil resistance 750Ω

Series 781 SPDT Ice Cube Relays

15 Amp, SPDT Operation

The Series 781 Electromechanical Ice Cube Relay is a full-featured SPDT relay that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color-coded. For testing the operation, a removable lock-down lever holds the test button in place. The clear plastic housing gives a view of the contacts, and there is a removable I.D. tag for labeling the circuit.

Product Applications

Refrigeration compressor systems
HVAC motor controls
Water/wastewater pump control

Clear plastic housing to easily view the contacts
Flag and LED status indicators for visual confirmation of relay state
Socket mounted for quick installation/replacement

Specifications

Series: 781 SPDT Ice Cube Relays
Category/Type: Process Control
Type: Relays
Series: 781 SPDT Ice Cube Relays
Operating and Load Voltage Range: 24 to 240 VAC; 24 VDC.
Electrical Connection: Silver alloy plug-in contacts.
Switching Operation: SPDT.
Electrical Rating: 15 A @ 150 / 277 VAC (50/60Hz) or 28 VDC.
Temperature Limits: Storage: -40 to 185°F (-40 to 85°C);Operation: -40 to 131°F (-40 to 55°C).
Power Consumption: 0.9 VA; 0.7W.
Cycle Life: 100;000 cycles (electrical); 10;000;000 cycles (mechanical).
Housing: Plastic polycarbonate.
Weight: 1.02 oz (29 g).
Agency Approvals: CE; CSA; RoHS; cUL; UL; cUR; UR.
