781XAXRM4L-120A | SPDT ice cube relays | 15 amp rating | 120 VAC 50/60 Hz | coil resistance 4430Ω | Dwyer
SPDT ice cube relays, 15 amp rating, 120 VAC 50/60 Hz, coil resistance 4430Ω

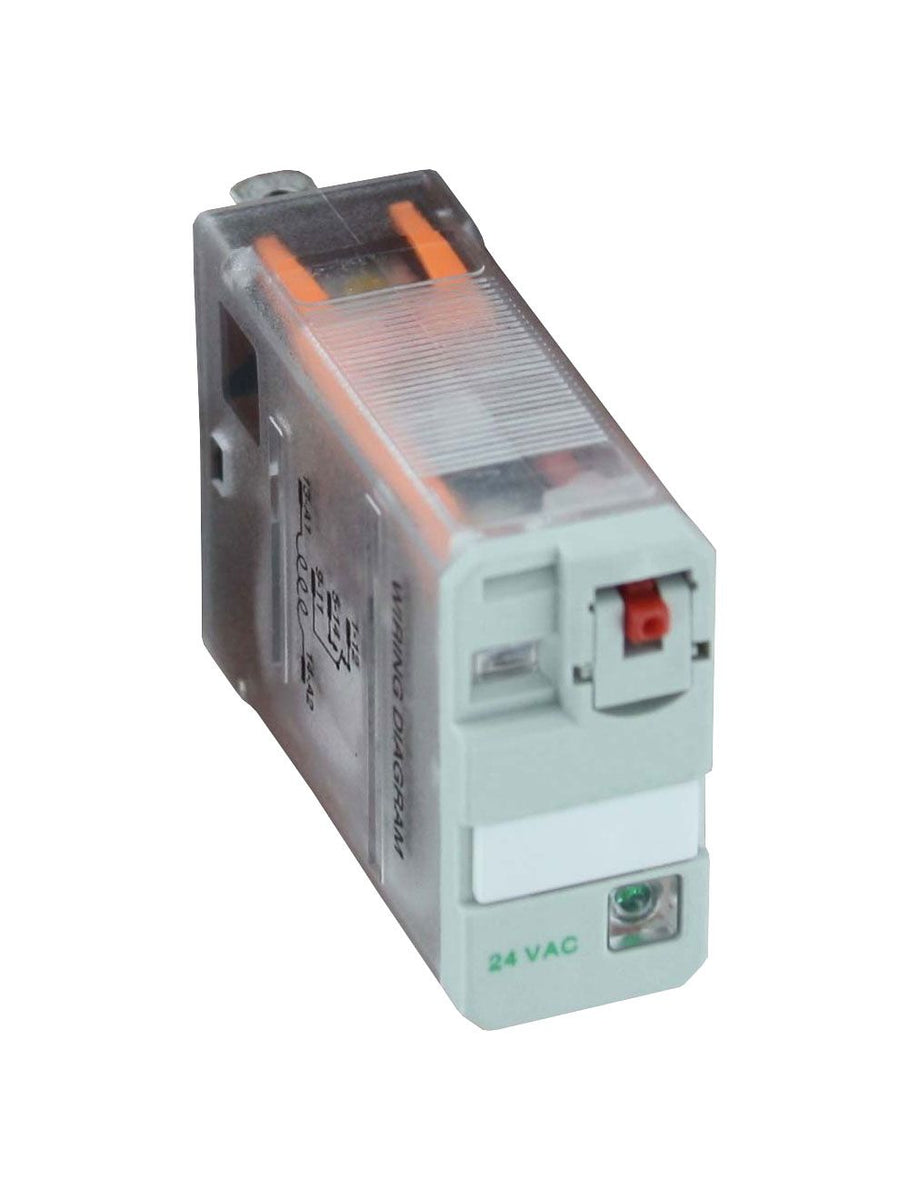

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 781XAXRM4L-120A
Documents and manuals
Dwyer 781XAXRM4L-120A Documents
Overview
Details for 781XAXRM4L-120A
See catalog product page for full listing
SPDT ice cube relays | 15 amp rating | 120 VAC 50/60 Hz | coil resistance 4430Ω
Series 781 SPDT Ice Cube Relays
15 Amp, SPDT Operation
The Series 781 Electromechanical Ice Cube Relay is a full-featured SPDT relay that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color-coded. For testing the operation, a removable lock-down lever holds the test button in place. The clear plastic housing gives a view of the contacts, and there is a removable I.D. tag for labeling the circuit.
Product Applications
- Refrigeration compressor systems
- HVAC motor controls
- Water/wastewater pump control
- Clear plastic housing to easily view the contacts
- Flag and LED status indicators for visual confirmation of relay state
- Socket mounted for quick installation/replacement
Specifications
- Series
- 781 SPDT Ice Cube Relays
- Category/Type
- Process Control
- Type
- Relays
- Series
- 781 SPDT Ice Cube Relays
- Operating and Load Voltage Range
- 24 to 240 VAC; 24 VDC.
- Electrical Connection
- Silver alloy plug-in contacts.
- Switching Operation
- SPDT.
- Electrical Rating
- 15 A @ 150 / 277 VAC (50/60Hz) or 28 VDC.
- Temperature Limits
- Storage: -40 to 185°F (-40 to 85°C);Operation: -40 to 131°F (-40 to 55°C).
- Power Consumption
- 0.9 VA; 0.7W.
- Cycle Life
- 100;000 cycles (electrical); 10;000;000 cycles (mechanical).
- Housing
- Plastic polycarbonate.
- Weight
- 1.02 oz (29 g).
- Agency Approvals
- CE; CSA; RoHS; cUL; UL; cUR; UR.
