750XBXH-24A | 8-pin/DPDT | input voltage 24 VAC 50/60 Hz | coil resistance 72 ohms | 12 amp rating | plug-in | Dwyer
8-pin/DPDT, input voltage 24 VAC 50/60 Hz, coil resistance 72 ohms, 12 amp rating, plug-in

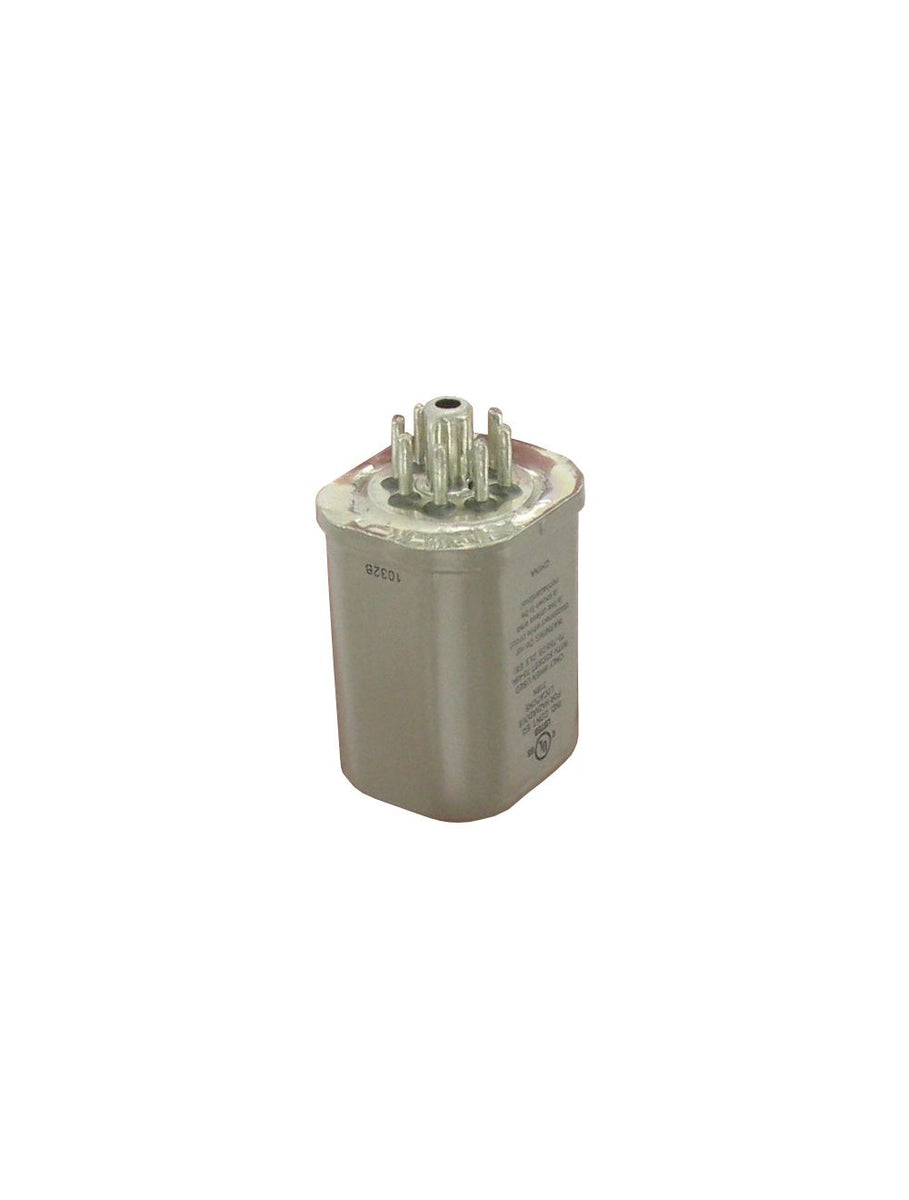

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 750XBXH-24A
Documents and manuals
Dwyer 750XBXH-24A Documents
Overview
Details for 750XBXH-24A
See catalog product page for full listing
8-pin/DPDT | input voltage 24 VAC 50/60 Hz | coil resistance 72 ohms | 12 amp rating | plug-in
Series 750H Hermetically Sealed Relay
12 Amp, DPDT Operation (8-pin) or 3PDT Operation (11-pin)
The Series 750H Hermetically Sealed Electromechanical Relay is designed to be used in Class I Division 2 hazardous area locations. Gold flashed contacts provide protection against oxidation in low current / voltage applications. 8-pin and 11-pin sockets are available to allow quick and easy installation for both surface and DIN rail mounting.
Note: All purchases must be 10 units or more.
Specifications
- Series
- 750H Hermetically Sealed Relay
- Category/Type
- Process Control
- Type
- Relays
- Series
- 750H Hermetically Sealed Relay
- Operating and Load Voltage Range
- 24 to 120 VAC.
- Operating Range (% of Nominal)
- 85 to 110% (AC operated); 80 to 110% (DCoperated).
- Electrical Connection
- Silver alloy plug-in contacts.
- Switching Operation
- DPDT (8-pin models) or 3PDT (11-pin models).
- Electrical Rating
- 12 A @ 120/240 VAC (50/60 Hz) or 28 VDC.
- Temperature Limits:
- >Storage: -40 to 185°F (-40 to 85°C);Operation: -40 to 131°F (-40 to 55°C).
- Power Consumption
- 1.2 VA; 0.9 W.
- Cycle Life
- 100;000 cycles (electrical); 10;000;000 cycles (mechanical).
- Housing
- Metal.
- Weight
- 4.6 oz (130 g).
- Enclosure Rating
- Class 1 Div. 2.
- Agency Approvals
- CE; RoHS; cUL*; UL*; cUR; UR.
- *When used with listed sockets.
