Documents: 750XBXH-120A

Series 750H Catalog Page More Info

750XBXH-120A | 8-pin/DPDT | input voltage 120 VAC 50/60 Hz | coil resistance 1700 ohms | 12 amp rating | plug-in | Dwyer

8-pin/DPDT, input voltage 120 VAC 50/60 Hz, coil resistance 1700 ohms, 12 amp rating, plug-in

Brand: DwyerSKU: 750XBXH-120A

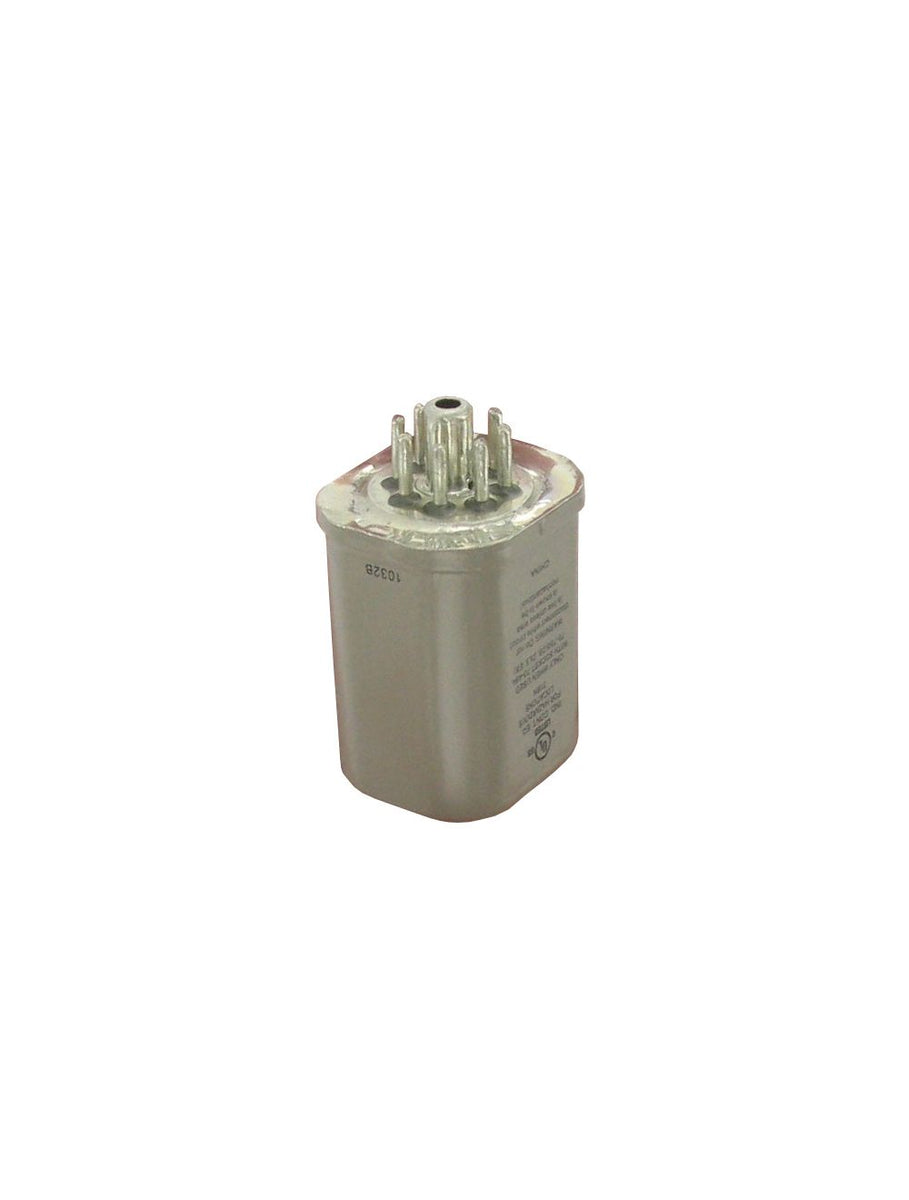

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 750XBXH-120A

Jump to: Overview & Specifications Reviews

Overview Details for 750XBXH-120A

See catalog product page for full listing

8-pin/DPDT | input voltage 120 VAC 50/60 Hz | coil resistance 1700 ohms | 12 amp rating | plug-in

Series 750H Hermetically Sealed Relay

12 Amp, DPDT Operation (8-pin) or 3PDT Operation (11-pin)

The Series 750H Hermetically Sealed Electromechanical Relay is designed to be used in Class I Division 2 hazardous area locations. Gold flashed contacts provide protection against oxidation in low current / voltage applications. 8-pin and 11-pin sockets are available to allow quick and easy installation for both surface and DIN rail mounting.

Note: All purchases must be 10 units or more.

Specifications

Series: 750H Hermetically Sealed Relay
Category/Type: Process Control
Type: Relays
Series: 750H Hermetically Sealed Relay
Operating and Load Voltage Range: 24 to 120 VAC.
Operating Range (% of Nominal): 85 to 110% (AC operated); 80 to 110% (DCoperated).
Electrical Connection: Silver alloy plug-in contacts.
Switching Operation: DPDT (8-pin models) or 3PDT (11-pin models).
Electrical Rating: 12 A @ 120/240 VAC (50/60 Hz) or 28 VDC.
Temperature Limits:: >Storage: -40 to 185°F (-40 to 85°C);Operation: -40 to 131°F (-40 to 55°C).
Power Consumption: 1.2 VA; 0.9 W.
Cycle Life: 100;000 cycles (electrical); 10;000;000 cycles (mechanical).
Housing: Metal.
Weight: 4.6 oz (130 g).
Enclosure Rating: Class 1 Div. 2.
Agency Approvals: CE; RoHS; cUL*; UL*; cUR; UR.
: *When used with listed sockets.
