Lin-E-Aire® Pneumatic Valve Actuators LIN-E-AIRE™ Catalog Page More Info

15S621 | Pneumatic valve actuator | air-to-lower | 1" (25.4 mm) travel max. | Ae³ 45 in.² (290 cm²) | 50 psi (3.5 kg/cm²) P max. | Dwyer

Pneumatic valve actuator, air-to-lower, 1" (25.4 mm) travel max., Ae³ 45 in.² (290 cm²), 50 psi (3.5 kg/cm²) P max.

Brand: DwyerSKU: 15S621

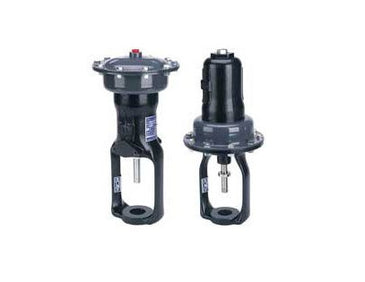

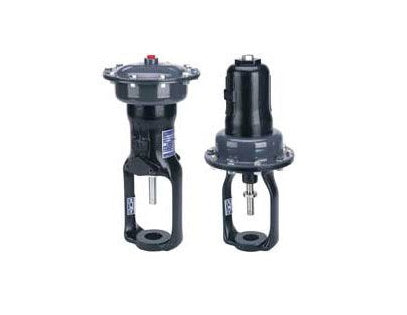

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 15S621

Suggested Alternatives

Jump to: Overview & Specifications Reviews

Overview Details for 15S621

See catalog product page for full listing

Pneumatic valve actuator | air-to-lower | 1" (25.4 mm) travel max. | Ae³ 45 in.² (290 cm²) | 50 psi (3.5 kg/cm²) P max.

LIN-E-AIRE® Pneumatic Valve Actuator

Ideal for Steam and Water Flow Control, Low Flow Options

Lin-E-Aire® Valve Actuators offer the ultimate in precision diaphragm motor control. These actuators are available in either air-to-lower or air-to-raise types. Both types feature easily accessible spring compression nuts permitting easy range change and adjustment.

These actuators employ molded Buna-N rubber diaphragms reinforced with nylon, for resilient, easy valve action. No more than 10% of the diaphragm area is lost during a full stroke of the actuator, thereby imparting a practically constant force throughout the length of the stroke.

Specifications

Temperature Limit: 150°F (66°C).
Materials of Construction: Diaphragm: molded Buna-N rubber; nylon reinforced; Diaphragm Support Plate: plated steel; Spring: plated spring steel; Push Rod: plated cold rolled steel; Housing: drawn steel with baked enamel finish; Yoke: cast iron with baked enamel finish; Spring Adjustment: plated cold rolled steel; ball thrust bearing.
: CAUTION: Use of an actuator supply gas other than air can create a hazardous environment because a small amount of gas continuously vents to atmosphere.
