SSM-8-A-L-875/GASRE24-450-WS | 8" Flanged ANSI 125 | 875 GPM Pressure Independent Control Valve | L Cartridge | NO | Linear Actuator | 24 VAC Floating;Modulating;On/Off | Fail Open | with Enclosed Terminal Strip;Time Out | Bray

8" Flanged ANSI 125 | 875 GPM Pressure Independent Control Valve | L Cartridge | Normally Open | Linear Actuator | 24 VAC Floating;Modulating;On/Off | Fail Open | with Enclosed Terminal Strip;Time Out | with Weather Shield

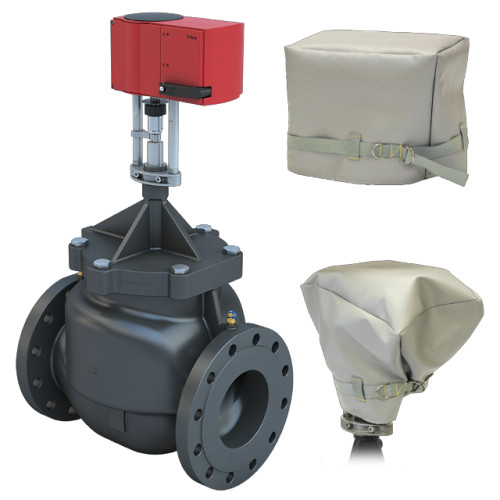

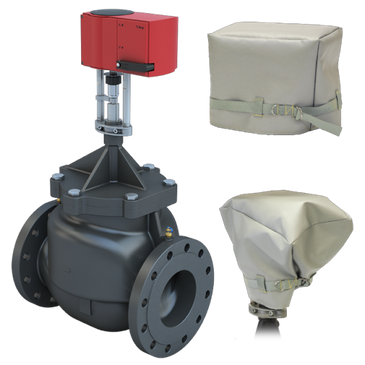

Bray | SSM-8-A-L-875/GASRE24-450-WS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SSM-8-A-L-875/GASRE24-450-WS
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Bray SSM-8-A-L-875/GASRE24-450-WS Documents

More Info

Overview

Details for SSM-8-A-L-875/GASRE24-450-WS



Specifications

Product
SSM-8-A-L-875/GASRE24-450-WS
Valve Size
8"
2-Way / 3-Way
2-Way
Valve Product Type
PIC Valve
Valve Position
Normally Open
Valve End Connection
ANSI Class 125 Flanged
GPM
875
Minimum Pressure Differential
4.4
Actuator Control Signal
Floating;On/Off;Modulating
Actuator Action
Spring Return
Fail Position
Fail Open
Actuator Features
Time Out;Enclosed Terminal Strip
Actuator Power Supply
24 VAC
Actuator Conduit Connection
Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification
IP66
Actuator Stroke Time
Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
Close Off Pressure
116
Weight
392.2
