Documents: SSM-8-A-H-910C/GASEX24-450
SSM-8-A-H-910C/GASEX24-450 | 8" Flanged ANSI 125 | 910 GPM Pressure Independent Control Valve | H Cartridge | NC | Linear Actuator | 24 VAC Floating;Modulating;On/Off | Fail Closed | with Enclosed Terminal Strip;Time Out | Bray
8" Flanged ANSI 125 | 910 GPM Pressure Independent Control Valve | H Cartridge | Normally Closed | Linear Actuator | 24 VAC Floating;Modulating;On/Off | Fail Closed | with Enclosed Terminal Strip;Time Out

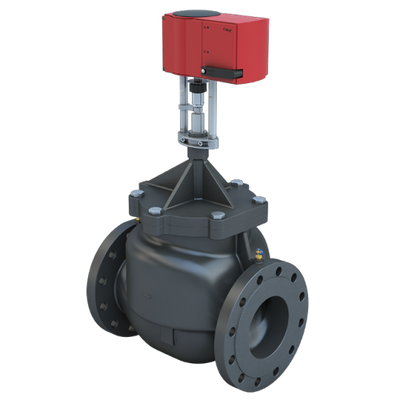

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SSM-8-A-H-910C/GASEX24-450
Overview Details for SSM-8-A-H-910C/GASEX24-450
Specifications
- Product
- SSM-8-A-H-910C/GASEX24-450
- Valve Size
- 8"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- PIC Valve
- Valve Position
- Normally Closed
- Valve End Connection
- ANSI Class 125 Flanged
- GPM
- 910
- Minimum Pressure Differential
- 8
- Actuator Control Signal
- On/Off;Floating;Modulating
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Features
- Time Out;Enclosed Terminal Strip
- Actuator Power Supply
- 24 VAC
- Actuator Conduit Connection
- Knock Out - M20×1.5 (2×) and M16×1.5
- Actuator Area Classification
- IP66
- Actuator Stroke Time
- Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
- Close Off Pressure
- 116
- Weight
- 389.2
