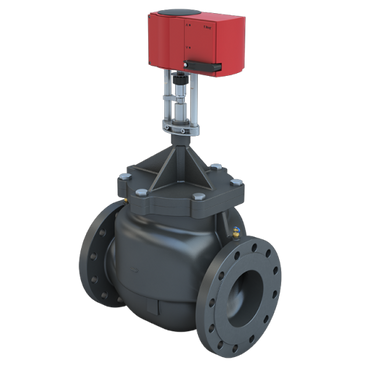

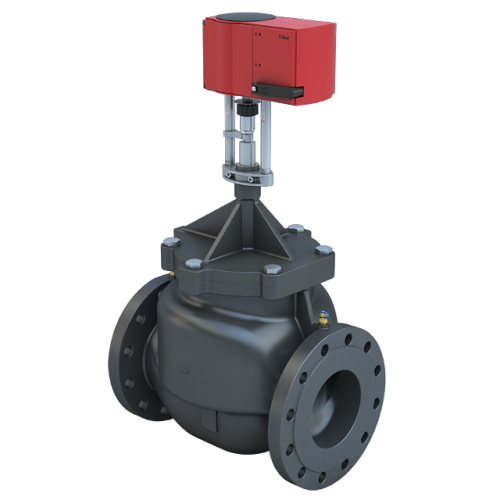

SSM-4-A-L-210C/GASEX24-450 | 4" Flanged ANSI 125 | 210.05 GPM Pressure Independent Control Valve | L Cartridge | NC | Linear Actuator | 24 VAC Floating;Modulating;On/Off | Fail Closed | with Enclosed Terminal Strip;Time Out | Bray

Brand: BraySKU: SSM-4-A-L-210C/GASEX24-450

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for SSM-4-A-L-210C/GASEX24-450

Product: SSM-4-A-L-210C/GASEX24-450
Valve Size: 4"
2-Way / 3-Way: 2-Way
Valve Product Type: PIC Valve
Valve Position: Normally Closed
Valve End Connection: ANSI Class 125 Flanged
GPM: 210.05
Minimum Pressure Differential: 3.78
Actuator Control Signal: On/Off;Floating;Modulating
Actuator Action: Spring Return
Fail Position: Fail Closed
Actuator Features: Time Out;Enclosed Terminal Strip
Actuator Power Supply: 24 VAC
Actuator Conduit Connection: Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification: IP66
Actuator Stroke Time: Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
Close Off Pressure: 116
Weight: 126.2
