MKL2-C080/70-24-0201 | 8" Lugged Butterfly valve High Performance | ANSI Class 150 | CS body | CV 2800 | Normally Closed | 24 VAC/DC | Two position | 2000 lb-in | NEMA 4 | Bray

Brand: BraySKU: MKL2-C080/70-24-0201

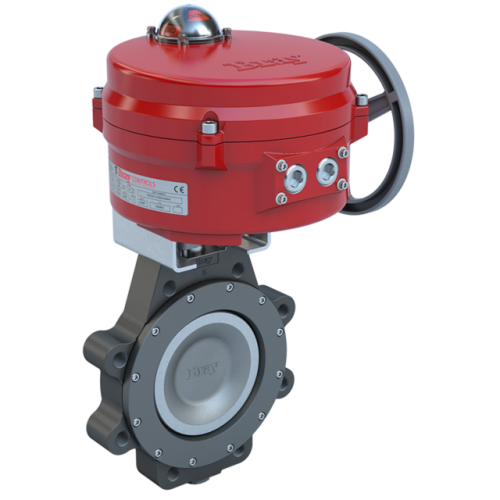

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for MKL2-C080/70-24-0201

Product: MKL2-C080/70-24-0201
Valve Size: 8"
2-Way / 3-Way: 2-Way
Valve Product Type: Butterfly Valve
Valve Position: Normally Closed
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 2800
Flow Direction: Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 285
Weight: 82.1
