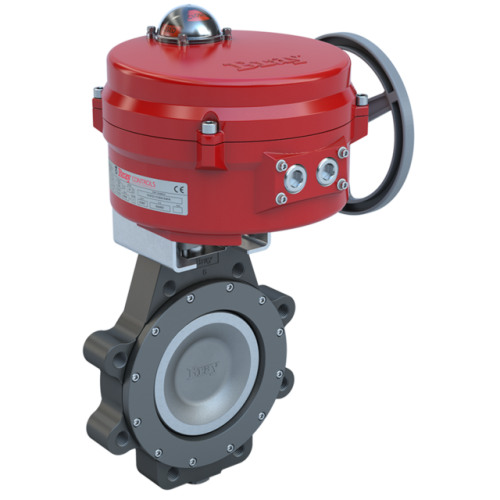

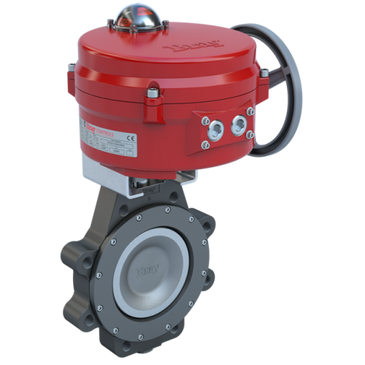

MKL2-C060/70-24-0201SV | 2 Way High Performance Butterfly Valve | Seat Retainer Downstream | 6 Inch | 24V Non Spring Return Actuator | Bray

Brand: BraySKU: MKL2-C060/70-24-0201SV

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MKL2-C060/70-24-0201SV

Jump to: Overview & Specifications Reviews

Overview Details for MKL2-C060/70-24-0201SV

2 Way High Performance Butterfly Valve | Seat Retainer Downstream | 6 Inch | 24V Non Spring Return Actuator

Description:

Bray MKL2-C060/70-24-0201SV 2 Way High Performance Butterfly Valve, Seat Retainer Downstream, 6 Inch, 24V Non Spring Return Actuator.

High performance butterfly valve model MKL2-C060 features:

- Seat retainer downstream.

- 6 inch.

- 150 mm.

- 285 PSI close-off.

- 90 degree 1350 Cv.

- 60 degree 510 Cv.

- 2-way flow.

- Normally closed.

- ANSI class 150.

- Double offset stem / disc design.

- Blow out proof stem.

- Energized RTFE seat.

- Pressure assisted, but not pressure dependent design.

- Adjustable PTFE packing.

- Dead end rating equal to nominal pressure rating.

- Carbon steel body.

- 316 stainless steel disc.

- 17-4 stainless steel stem.

- For use with hot water, chilled water, condenser water and steam.

Factory installed actuator model 70-24-0201SV features:

- 24 VAC.

- Modulating with Servo NXT technology.

- One touch menu driven push button selection of all settings.

- NEMA type 4, 4x and IP65 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

- Optional 5 watt PTC style heater.

- Optional 24V battery backup.

Bray’s MK Series High Performance Butterfly Valves are available in ANSI Class 150 and 300. Bray's high performance butterfly series is used in Building Automation, Temperature Controls, HVAC 2-Way and 3-Way Assemblies, Chilled Water, Hot Water, Steam, and Special Applications. The Bray/McCannalok MK Series high performance butterfly valves set the quality and design standard by which all other high performance valves are measured. The MK Series is ideally suited to high pressure, high temperature, and high cycle HVAC applications as well as mission critical HVAC applications.

Available in ANSI Class 150 ratings, both 2-way and 3-way, and ANSI Class 300 ratings in 2-way configurations, Bray’s MK Series valves are provided with a wide variety of direct mount Bray electric and pneumatic actuators and accessories. All valves are tested for bubble-tight closeoff to API 598 standards at maximum rated differential pressure.

Bray Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

The Bray Series 70 Servo NXT provides precise modulating control of valve position:

- Single Finger Technology (SFT) menu driven, pushbutton, programming with LED confirmation of all settings.

- Optical isolation of all inputs/outputs.

- Input Control - 4-20 mA or 0-10 VDC or 0-5 VDC or 2-10 VD.

- Position Feedback - 4-20 mA or 0-10 VDC or 0-5 VDC.

- Auto Calibrating.

- Fail Position.

- Speed Control.

- Manual Mode.

- On board signal generator to simplify field set up.

- Fault display simplifies troubleshooting.

- Stall detection- Eliminates mechanical damage in case of obstruction or bad switch settings.

- Provides interoperability with all controllers.

- Earth ground tolerant.

- Allows for parallel operation.

There is no better choice for building automation!

Actuator Power:24V
Flow:2 Way
Return Position:Non-Spring Return
Valve Size (In.):6

Specifications

Product: MKL2-C060/70-24-0201SV
Valve Size: 6"
2-Way / 3-Way: 2-Way
Valve Product Type: Butterfly Valve
Valve Position: Normally Closed
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 510
Flow Direction: Bi-Directional | Uni-Directional (Seat Retainer Upstream)
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 285
Weight: 64.1
