GASEX24-450 | Actuator | Spring Return | Normally Extended | 24V | 450 In-Lbs | Bray

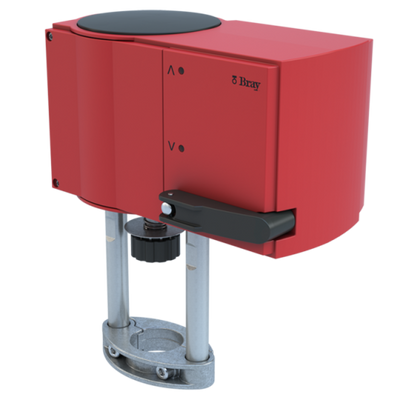

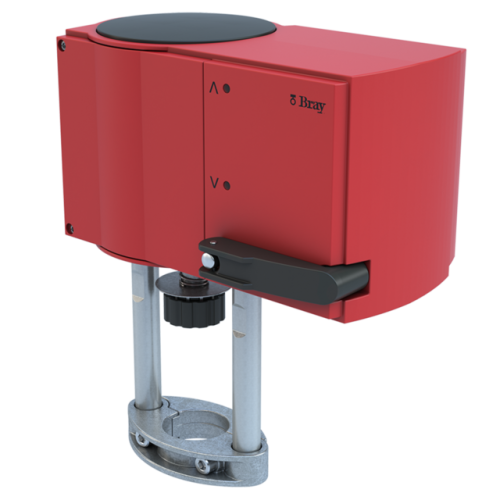

The Bray GA(S) series is a direct mount line of linear motor actuators to be used primarily on PIC and globe valves. The patented drive-valve coupling allows the drive to be connected to the valve automatically as soon as the power is applied to the actuator. An external crank handle enables the desired position to be set manually as well. Microprocessor technology enables the actuator to identify the functions required and to adapt itself automatically to the control valve properties.

These actuators operate on 24V AC or DC, and all input signals- 0-10V or 4-20mA modulating output, or On/Off (2-point) or Floating (3-point) control. The actuator automatically detects the control signal applied via a 2 LED display. These actuators operate both 2 and 3-way valves and are available in non-spring return (GA) and spring return (GAS) versions.

The GA(S) series is bi-directional, selectable via screw terminals.
