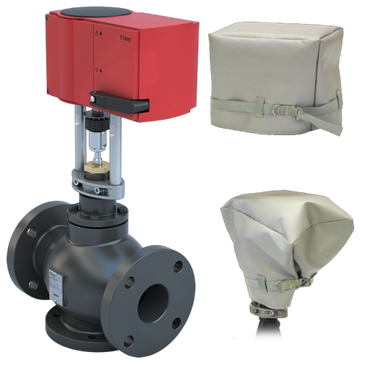

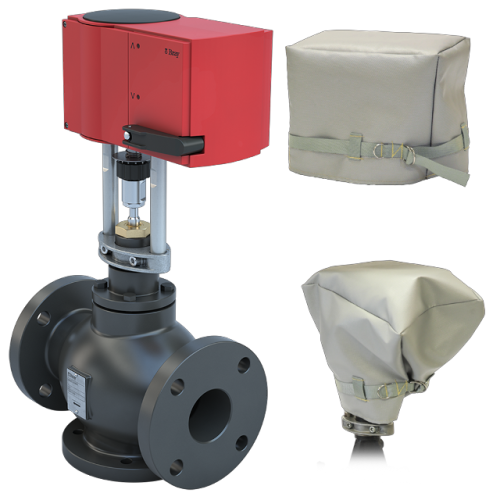

DG6-3-400C/GA24-562-WS | 6" | Flanged Globe valve | 3way | Cast Iron body | Bronze trim | CV 400 | Normally Closed | Normally Closed to C | Pic and Globe Valve Linear Actuator 24VAC/DC Non-Spring Return | Bray

Brand: BraySKU: DG6-3-400C/GA24-562-WS

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for DG6-3-400C/GA24-562-WS

Product: DG6-3-400C/GA24-562-WS
Valve Size: 6"
2-Way / 3-Way: 3-Way
Valve Product Type: Globe Valve
Valve Position: NC to Common (Branch Closed)
Valve End Connection: ANSI Class 125 Flanged
Assembly Cv: 400
Actuator Control Signal: On/Off;Floating;Modulating
Actuator Action: Non Spring Return
Fail Position: Fail Last
Actuator Features: Time Out;Enclosed Terminal Strip
Actuator Power Supply: 24 VAC
Actuator Conduit Connection: Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification: IP66
Actuator Stroke Time: Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm
Close Off Pressure: 16
Weight: 153.7
