BVMS8-S150-1350/70-24-0501SVH | 8
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$11,625.75
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships via FREIGHT
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

The product is not cancelable or returnable unless found defective

Speak With a Technical Expert

Image for Technical Expert

Documents: BVMS8-S150-1350/70-24-0501SVH

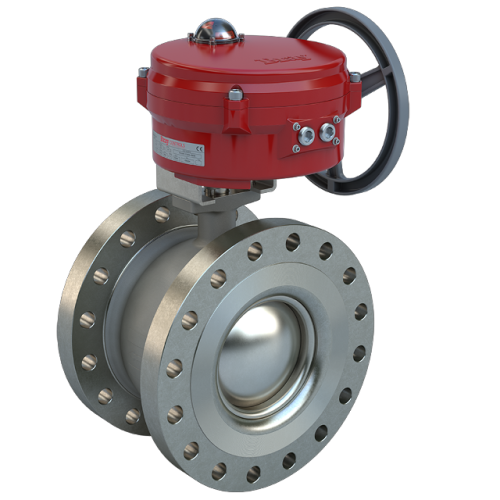

BVMS8-S150-1350/70-24-0501SVH | 8" | Flanged segmented ball valve | SS | CV 369 | Normally Open | 24 VAC/DC | modulating | 5000 lb-in | NEMA 4 | Heater | Bray

8 inch | Flanged segmented ball valve | SS | CV 369 | Normally Open | 24 VAC/DC | modulating | 5000 lb-in | NEMA 4 | Heater

Brand: BraySKU: BVMS8-S150-1350/70-24-0501SVH

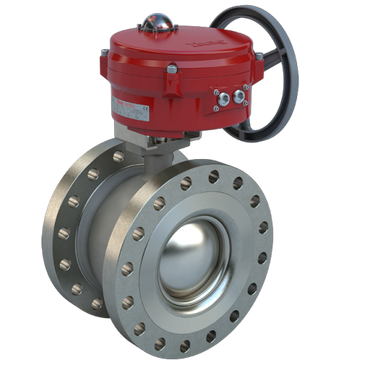

Bray | BVMS8-S150-1350/70-24-0501SVH
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BVMS8-S150-1350/70-24-0501SVH

Overview Details for BVMS8-S150-1350/70-24-0501SVH



Specifications

Product
BVMS8-S150-1350/70-24-0501SVH
Valve Size
8"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open
Valve End Connection
ANSI Class 150 Raised Faced Flanged
Assembly Cv
369
Actuator Control Signal
Modulating
Actuator Action
Non-Fail Safe
Fail Position
Fail Last
Actuator Features
Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
2 x 3/4" NPT
Actuator Area Classification
IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure
285
Weight
179
