Get Special Pricing!
BVMS4-C150-0436/70-24-0201 | 4" | Flanged segmented ball valve | CS | CV 436 | Normally Open | 24 VAC/DC | Two position | 2000 lb-in | NEMA 4 | Bray
4 inch | Flanged segmented ball valve | CS | CV 436 | Normally Open | 24 VAC/DC | Two position | 2000 lb-in | NEMA 4

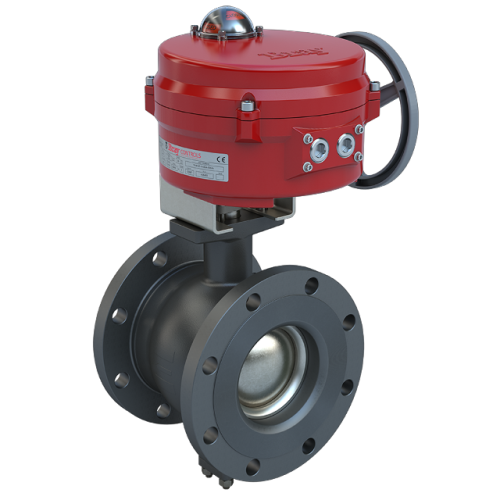

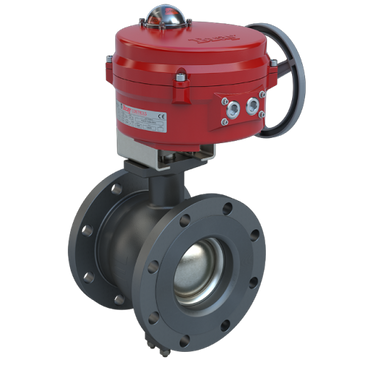

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BVMS4-C150-0436/70-24-0201
Documents and manuals
Bray BVMS4-C150-0436/70-24-0201 Documents
Overview
Details for BVMS4-C150-0436/70-24-0201
Specifications
- Product
- BVMS4-C150-0436/70-24-0201
- Valve Size
- 4"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- ANSI Class 150 Raised Faced Flanged
- Assembly Cv
- 436
- Actuator Control Signal
- On/Off
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 285
- Weight
- 73.2
