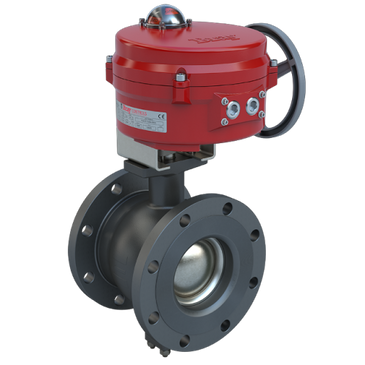

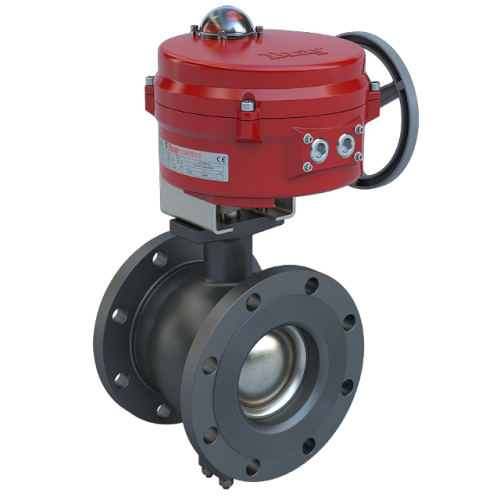

BVMS4-C150-0436/70-0121SVH | 2 Way Ball Valve | Flanged | 4 Inch | 120 VAC Modulating Industrial Actuator | Bray
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BVMS4-C150-0436/70-0121SVH
Documents and manuals
Overview
Details for BVMS4-C150-0436/70-0121SVH
2 Way Ball Valve | Flanged | 4 Inch | 120 VAC Modulating Industrial Actuator
Description:
Bray BVMS4-C150-0436/70-0121SVH 2 Way Ball Valve, Flanged, 4 Inch, 120 VAC Modulating Industrial Actuator.
BVMS Series flanged industrial control ball valve model BVMS4-C150-0436 features:
- 4 inch.
- 100 mm.
Factory installed actuator model 70-0121SVH features:
The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.
BVMS Series flanged industrial control ball valve model BVMS4-C150-0436 features:
- 4 inch.
- 100 mm.
- 436 Cv
- 375 Kv
- 2-way flow.
- 375 Kv
- 2-way flow.
- 285 PSI close-off water and steam.
- ASNI 150 flanges.
- Characterized ball segment.
- 1 piece phosphate coated carbon steel body.
- Stainless steel ball.
Factory installed actuator model 70-0121SVH features:
- 120 VAC.
- Modulating with Servo NXT technology.
- One touch menu driven push button selection of all settings.
- NEMA type 4, 4x and IP65 enclosure.
- High visibility beacon position indicator.
- Manual declutchable override hand wheel, pull to engage, push to disengage.
- 5 watt PTC style heater.
- Auxiliary switch.
- ASTM B85 pressure die cast aluminum housing with polyester powder coat.
- Stainless steel exposed fasteners.
- 2 conduit connections.
The BVMS Series Industrial Ball valves are flanged segmented valves designed for control and On/Off applications where high temperature and high pressure water or steam are used. The valves feature a characterized ball segment for high rangeability with a splined stem connection for precise control, as well as a low friction shaft and thrust bearings for longer life and smaller actuators. These valves provide ample flow capacity, equal percentage flow characteristics and Class VI leakage. Valve bodies are one-piece carbon steel with cast Stainless Steel balls and ASNI 150 flanges.
The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.
The Series 70 Servo NXT provides precise modulating control of valve position:
- Single Finger Technology (SFT) menu driven, pushbutton, programming with LED confirmation of all settings.
- Optical isolation of all inputs/outputs.
- Input Control - 4-20 mA or 0-10 VDC or 0-5 VDC or 2-10 VD.
- Position Feedback - 4-20 mA or 0-10 VDC or 0-5 VDC.
- Auto Calibrating.
- Fail Position.
- Speed Control.
- Manual Mode.
- On board signal generator to simplify field set up.
- Fault display simplifies troubleshooting.
- Stall detection- Eliminates mechanical damage in case of obstruction or bad switch settings.
- Provides interoperability with all controllers.
- Earth ground tolerant.
- Allows for parallel operation.
There is no better choice for building automation!
- Actuator Power:120V
- Flow:2 Way
- Valve Size (In.):4
Specifications
- Product
- BVMS4-C150-0436/70-0121SVH
- Valve Size
- 4"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- ANSI Class 150 Raised Faced Flanged
- Assembly Cv
- 98
- Actuator Control Signal
- Modulating
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
- Actuator Power Supply
- 120 VAC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 285
- Weight
- 73.2
