Documents: BVMS2-S150-0095/70-24-0081H
BVMS2-S150-0095/70-24-0081H | 2" | Flanged segmented ball valve | SS | CV 95 | Normally Open | 24 VAC/DC | Two position | 800 lb-in | NEMA 4 | Heater | Bray
2 inch | Flanged segmented ball valve | SS | CV 95 | Normally Open | 24 VAC/DC | Two position | 800 lb-in | NEMA 4 | Heater

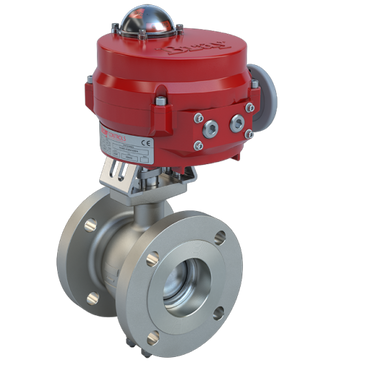

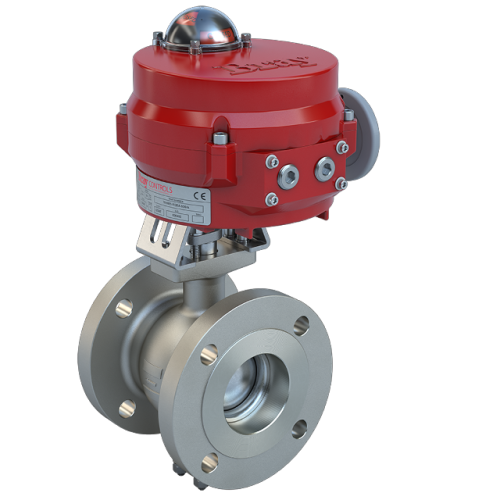

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BVMS2-S150-0095/70-24-0081H
Overview Details for BVMS2-S150-0095/70-24-0081H
Specifications
- Product
- BVMS2-S150-0095/70-24-0081H
- Valve Size
- 2"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- ANSI Class 150 Raised Faced Flanged
- Assembly Cv
- 95
- Actuator Control Signal
- On/Off
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 285
- Weight
- 30.9
