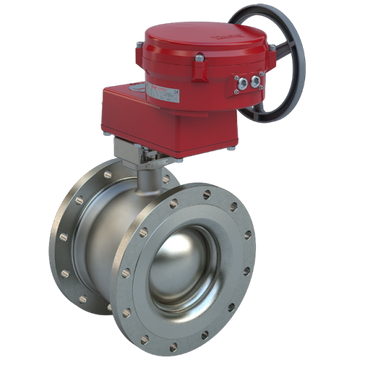

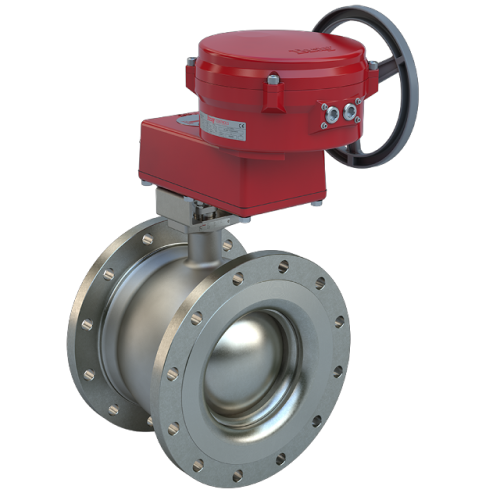

BVMS12-S150-3410/70-1300H | 12" | Flanged segmented ball valve | SS | CV 3410 | Normally Open | 120 VAC | Two position | 13000 lb-in | NEMA 4 | Heater | Bray

Brand: BraySKU: BVMS12-S150-3410/70-1300H

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BVMS12-S150-3410/70-1300H

Product: BVMS12-S150-3410/70-1300H
Valve Size: 12"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: ANSI Class 150 Raised Faced Flanged
Assembly Cv: 3410
Actuator Control Signal: On/Off
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 285
Weight: 420
