BVMS12-C150-3410/70-1300H | 2 Way Ball Valve | Flanged | 12 Inch | 120 VAC Industrial Actuator | Bray

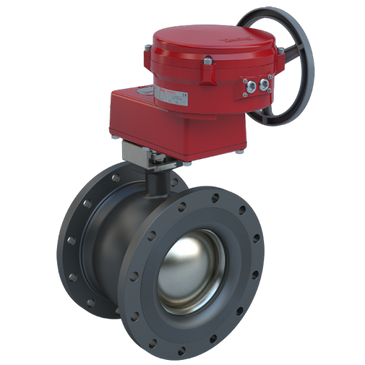

Bray | BVMS12-C150-3410/70-1300H

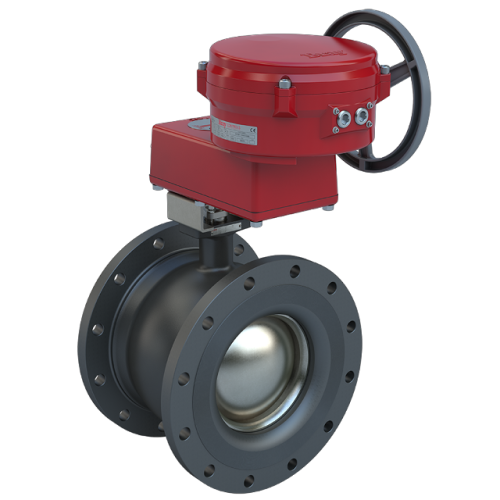

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BVMS12-C150-3410/70-1300H

Overview

Details for BVMS12-C150-3410/70-1300H

2 Way Ball Valve | Flanged | 12 Inch | 120 VAC Industrial Actuator

Description:

Bray BVMS12-C150-3410/70-1300H 2 Way Ball Valve, Flanged, 12 Inch, 120 VAC Industrial Actuator.

BVMS Series flanged industrial control ball valve model BVMS12-C150-3410 features:
- 12 inch.
- 300 mm.
- 3410 Cv
- 2933 Kv
- 2-way flow.
- 285 PSI close-off water and steam.
- ASNI 150 flanges.
- Characterized ball segment.
- 1 piece phosphate coated carbon steel body.
- Stainless steel ball.

Factory installed actuator model 70-1300H features:
- 120 VAC.
- On/Off.
- NEMA type 4, 4x and IP65 enclosure.
- High visibility beacon position indicator.
- Manual declutchable override hand wheel, pull to engage, push to disengage.
- 5 watt PTC style heater.
- Auxiliary switch.
- ASTM B85 pressure die cast aluminum housing with polyester powder coat.
- Stainless steel exposed fasteners.
- 2 conduit connections.

The BVMS Series Industrial Ball valves are flanged segmented valves designed for control and On/Off applications where high temperature and high pressure water or steam are used. The valves feature a characterized ball segment for high rangeability with a splined stem connection for precise control, as well as a low friction shaft and thrust bearings for longer life and smaller actuators. These valves provide ample flow capacity, equal percentage flow characteristics and Class VI leakage. Valve bodies are one-piece carbon steel with cast Stainless Steel balls and ASNI 150 flanges.

The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

There is no better choice for building automation!
  • Actuator Power:120V
  • Flow:2 Way
  • Valve Size (In.):12


Specifications

Product
BVMS12-C150-3410/70-1300H
Valve Size
12"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open
Valve End Connection
ANSI Class 150 Raised Faced Flanged
Assembly Cv
3410
Actuator Control Signal
On/Off
Actuator Action
Non-Fail Safe
Fail Position
Fail Last
Actuator Features
Auxiliary Switches;Enclosed Terminal Strip;Heater;Manual Override Handwheel
Actuator Power Supply
120 VAC
Actuator Conduit Connection
2 x 3/4" NPT
Actuator Area Classification
IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure
285
Weight
420
