BV75-CS3-15/DMS24-180 | 2 Way Ball Valve | 3/4 Inch | 24 VAC / VDC Spring Return Actuator | Bray

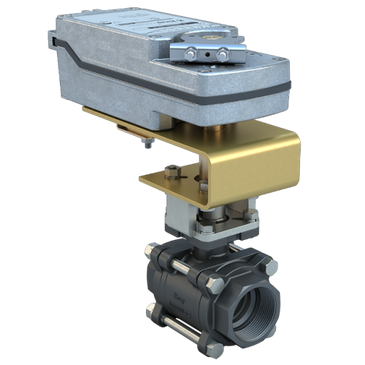

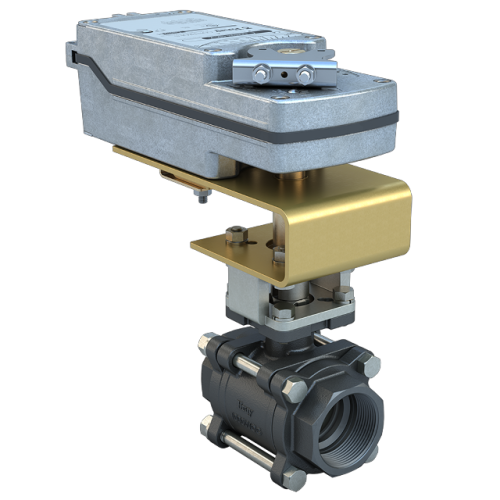

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BV75-CS3-15/DMS24-180

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray BV75-CS3-15/DMS24-180 Documents

Bray BV75-CS3-15/DMS24-180 Catalog Bray BV75-CS3-15/DMS24-180 Submittal Bray BV75-CS3-15/DMS24-180 Installer's Guide Bray DMS24-180 Submittal Bray DMS24-180 Installer's Guide More Info

Overview

Details for BV75-CS3-15/DMS24-180

2 Way Ball Valve | 3/4 Inch | 24 VAC / VDC Spring Return Actuator

Description:

Bray BV75-CS3-15/DMS24-180 2 Way Ball Valve, 3/4 Inch, 24 VAC / VDC Spring Return Actuator.

BV Series threaded industrial control ball valve model BV75-CS3-15 features:
- 3/4 inch.
- 20 mm.

- 90 degree V-cut port.
- 15.3 Cv
- 13.2 Kv
- 2-way flow.

- 300 PSI close-off water / 100 PSI steam.

- Threaded NPT.

- WCB carbon steel body.

- Stainless steel ball and stem.

Factory installed actuator model DMS24-180 features:
- Spring return.
- 24 VAC or 24 VDC.
- Modulating with feedback.

- Input signal 0-10 VDC or 0-20 mA with field furnished 500 Ohm, 0.25 W minimum resistor.

- 3/8 inch flex conduit.

- Standard cable.

- Hex head screw override.

- Standard NEMA 2, IP54 enclosure.

- Optional weather shield available.

- Optional auxiliary switch available.

The BV Series Threaded Industrial Ball Valve product line is ideally suited to high temperature and high pressure water or steam as well as a wide range of heavy commercial HVAC

control applications. These valves provide exceptional characterized control, high rangeability, flow capacity and pressure drops; all with bi-directional bubble tight shut off. Valves in this range feature investment cast 3 piece construction, Carbon Steel housings and Stainless Steel balls and stems with NPT threaded connections. Characterized V-Balls and full port versions provide multiple Cv values in each size.

Actuator Power:24V
Flow:2 Way
Return Position:Spring Return
Valve Size (In.):0.75

Specifications

Product: BV75-CS3-15/DMS24-180
Valve Size: 3/4"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 4.27
Actuator Control Signal: Modulating
Actuator Action: Spring Return
Fail Position: Fail Open
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 300
Weight: 13.7
